Schneider Electric XB5AD912R47K Harmony XB5 Potentiometer 22mm 47k IP66/IP69K

  • MPN: XB5AD912R47K
  • PPN: SCH-XB5AD912R47K
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $70.98

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

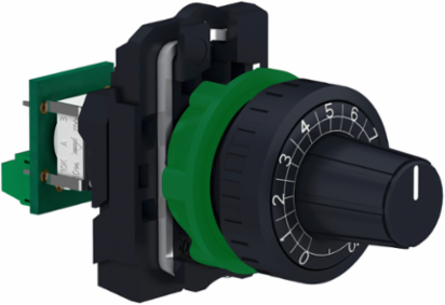

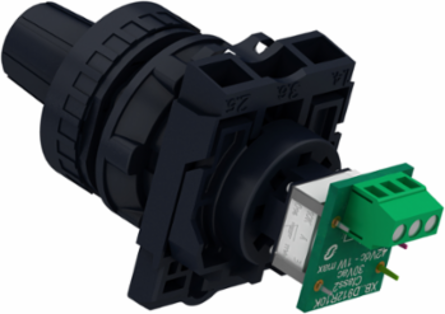

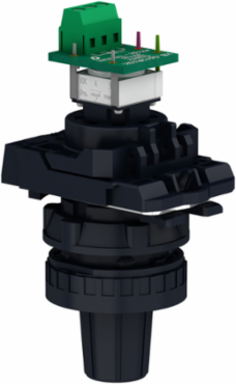

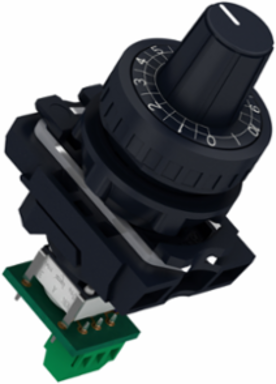

    This Harmony XB5, 22mm diameter potentiometer has a resistance of 47kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France

    Physical Attributes

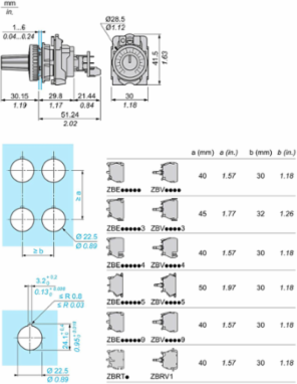

    Cad Overall Depth
    82 mm
    Cad Overall Width
    30 mm
    Cad Overall Height42 mm
    Color Of Markingwhite

    Complementary Attributes

    Rated Power In W
    1 W 70 °C

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    [Us] Rated Supply Voltage
    <= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.11017684594348223
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.6 kg CO2 eq., 0.5590337283500456
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Product Repair Index Dam Doc
    XB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2248
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    16 %
    Bezel Material
    dark grey plastic
    Device Short Name
    XB5
    Group Of Product
    potentiometer knurled knob
    Main Group
    potentiometer
    Mechanical Durability
    50000 cycles
    Ohmic Value
    47000 Ohm
    Potentiometer Characteristic
    linear
    Product Or Component Type
    potentiometer
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    1 kg CO2 eq.
    Color Of Marking
    white
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Potentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Nbr. Of Units In Pkg.
    1
    Product Repair Index - Dam Document Id
    XB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)
    18
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    5.4273
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    2.0211
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    2.0211
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Precision Of Internal Conversion Resistor+-10%, +-10%
    Certificate AgencyCSA, BV, UL Listed
    Carbon Footprint Of The Distribution Phase [A4]0.006276754785779399, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.012486235186873291, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.5 kg CO2 eq., 0.46984
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312041EN
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content27 %
    Compatibility CodeXB5
    Electrical Shock Protection Classclass II conforming to IEC 60536
    Head Typestandard
    Materialcermet
    Mounting Diameter22 mm
    Operator Profileknurled knob, with white)
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Repair IndexA
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingNo
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2312041_V1
    Pep Verification Date2024-06-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Package Weight(Lbs)58.0 g
    Take-backNo
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]11.033
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]13.055
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]11.033

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Nema Degree Of Protection
    NEMA 13, NEMA 4X, UL type 4X/13
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Carbon Footprint
    1.1578135642661804
    Environmental Disclosure
    ENVPEP2312041_V1
    Ip Degree Of Protection
    IP66 IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2312041_V1
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level16 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2312041EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product CompatibilityØ 6 mm shaft
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2024-06-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    potentiometer
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC001027
    ETIM 9EC001027

    Overview Attributes

    Device Presentation
    complete product
