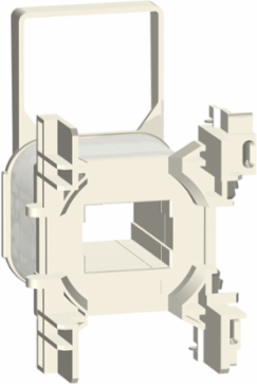

Schneider Electric LXD3T7 TeSys Deca Contactor Coil 480V AC 60Hz, 0.07 kg, 3600 cyc/h
- MPN: LXD3T7
- PPN: SCH-LXD3T7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TeSys Deca contactor coil from Schneider Electric operates at 480V AC and 60Hz, making it a reliable component for industrial automation and control applications. With a remarkable endurance of up to 3600 cycles per hour, it ensures efficient and consistent performance, ideal for demanding environments. This coil is engineered to work seamlessly with various starters and contactors, providing essential functionality in controlling electric motors and other equipment. Perfect for maintaining robust operational workflows in industrial settings, its design reflects Schneider Electric s commitment to quality and reliability in automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Complementary Attributes
- Control Circuit Type
- AC 60 Hz
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit Voltage Limitsdrop-out: 0.3...0.6 Uc at 60 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 4-5 W 60 Hz
- Inrush Power In Va
- 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- [Uc] Control Circuit Voltage
- 480 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504508000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance607 Ohm 20 °C
Device Short NameLXD3
Inductance Of Closed Circuit33.1 H
Mechanical Durability6 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys Deca
Sustainable PackagingYes
Hold-in Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)160.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- LC1D40A...D80A, LC2D40A...D80A, LC1DT60A...DT80A
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
