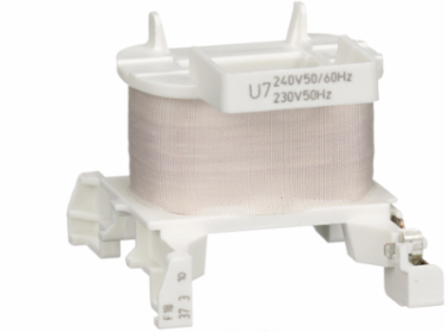

Schneider Electric LXD1U7 TeSys Deca Contactor Coil, 240V AC 50/60Hz, 9-38A, 0.07 kg

MPN: LXD1U7
PPN: SCH-LXD1U7

$117.98

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

With its robust construction and reliable performance, the TeSys Deca Contactor Coil from Schneider Electric is designed for effective automation and control in various industrial applications. Operating at 240V AC with a frequency range of 50/60Hz, this coil supports load currents between 9 to 38A, ensuring it meets the demands of diverse electrical systems. Its lightweight design simplifies installation and integration, making it an essential component for panel builders and maintenance teams looking for efficiency and dependability in their electrical setups.

Features

Designed specifically for 240V AC at 50/60 Hz, this replacement contactor coil ensures seamless integration with standard industrial control transformers and power supplies. Utilizing a genuine Schneider Electric (TeSys) component guarantees that your motor starter or lighting contactor receives the exact magnetic flux required for reliable armature seating, preventing the humming or overheating associated with mismatched voltage ratings.
Engineered as a direct-fit internal component for TeSys D Series contactors (frames LC1D09 through LC1D38) and DT20 through DT40 four-pole models, this coil allows for rapid field replacement. This modularity means you can repair a single failed component rather than replacing the entire contactor assembly, significantly reducing maintenance overhead and inventory costs for your facility.
Featuring the innovative TeSys snap-fit design, this coil can be replaced in minutes using only basic tools, once the contactor housing is opened. The clearly labeled terminals and precision-molded body ensure error-free installation, allowing plant electricians to restore power to motor circuits quickly and minimize costly production downtime during emergency repairs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore, United States

Complementary Attributes

Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Maximum Operating Rate	3600 cyc/h 60 °C

Control Circuit Type	AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Publishable Date	2026-06-27
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1501004
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	562.3 Ohm 20 °C
Device Short Name	LXD1
Inductance Of Closed Circuit	22 H
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Pep Code	ENVPEP1501004EN
Hold-in Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)	74.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Heat Dissipation	2-3 W 50/60 Hz
Mechanical Durability	15 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	240 V AC 50/60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504508000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	CAD, LC1DT20...DT40, LC1D09...D38
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1501004EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1501004EN
