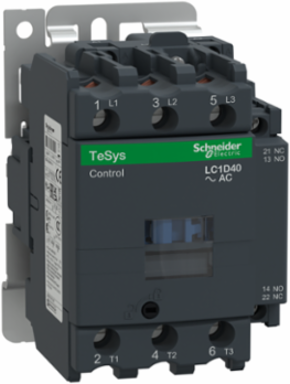

Schneider Electric LC1D40E7 TeSys Deca Contactor 3P 40A 440V 48V AC Coil, 75 mm Width
- MPN: LC1D40E7
- PPN: SCH-LC1D40E7
CAD
$413.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Deca Contactor by Schneider Electric is engineered for automation and control applications, offering robust functionality with a 40A capacity at 440V. Designed to accommodate various industrial needs, it features a three-pole configuration and integrates a 48V AC coil for efficient operation. With a compact width of just 75 mm, this contactor not only provides reliable switching but also conserves valuable panel space, making it an essential component for modern starters and contactors in diverse setups.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 40 A AC-3 at <= 440 V, 60 A AC-1 at <= 440 V
- Motor Power
- 18.5 kW at 380...400 V AC 50 Hz (AC-3) || 22 kW at 500 V AC 50 Hz (AC-3) || 30 kW at 660...690 V AC 50 Hz (AC-3) || 22 kW at 1000 V AC 50 Hz (AC-3) || 22 kW at 415 V AC 50 Hz (AC-3) || 22 kW at 440 V AC 50 Hz (AC-3) || 11 kW at 220...230 V AC 50 Hz (AC-3) || 9 kW at 400 V AC 50 Hz (AC-4) || 18.5 kW at 380...400 V AC 50 Hz (AC-3e) || 22 kW at 500 V AC 50 Hz (AC-3e) || 30 kW at 660...690 V AC 50 Hz (AC-3e) || 22 kW at 1000 V AC 50 Hz (AC-3e) || 22 kW at 415 V AC 50 Hz (AC-3e) || 22 kW at 440 V AC 50 Hz (AC-3e) || 11 kW at 220...230 V AC 50 Hz (AC-3e)
- Poles
- 3P
- Rated Making Capacity
- 800 A at 440 V
- Power Dissipation per Pole
- 5.4 W AC-1, 2.4 W AC-3, 2.4 W AC-3e
- Overvoltage Category
- III
- Operating Time
- 4-19 ms opening, 12-26 ms closing
- Control Circuit Type
- AC 50/60 Hz
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Minimum Switching Voltage
- 17 V control circuit
- Insulation Resistance
- > 10 MOhm control circuit
- Width
- 2.95 in (75 mm)
- Depth
- 4.69 in (119 mm)
- Motor Power Hp
- 3 hp at 115 V AC 60 Hz 1 phase; 5 hp at 230/240 V AC 60 Hz 1 phase; 10 hp at 200/208 V AC 60 Hz 3 phase; 10 hp at 230/240 V AC 60 Hz 3 phase; 30 hp at 460/480 V AC 60 Hz 3 phase; 30 hp at 575/600 V AC 60 Hz 3 phase
- Coil Technology
- Without built-in bidirectional peak limiting diode suppressor
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Shocks 10 Gn opened, 15 Gn closed; Vibrations 2-4 Gn (5-300 Hz)
- Standards
- EN 60947-4-1, IEC 60947-4-1, EN 60947-5-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- REACH Compliance
- Free of SVHC
- PVC Free
- Yes
- Warranty Period
- 18 months
Rated Operational Voltage<= 690 V AC 25...400 Hz
Maximum Horse Power30 Hp at 460/480 V AC 60 Hz 3 phase motors
Conventional Thermal Current60 A at 140 °F (60 °C) for power circuit; 10 A at 140 °F (60 °C) for control circuit
Rated Breaking Capacity800 A at 440 V
Rated Insulation Voltage600 V (CSA, UL), 690 V (IEC 60947-1)
Rated Impulse Withstand Voltage8 kV (IEC 60947)
Maximum Operating Rate3600 cycles/hour at 140 °F (60 °C)
Tightening Torque1.7 N.m control circuit; 5 N.m power circuit
Auxiliary Contacts TypeMechanically linked
Minimum Switching Current5 mA control circuit
Mounting SupportRail, Plate
Height5.00 in (127 mm)
Net Weight3.09 lb (1.4 kg)
Control Circuit Voltage48 V AC 50/60 Hz
Heat Dissipation4-5 W at 50/60 Hz for control circuit
Flame RetardanceV1 UL 94
Mechanical Durability6,000,000 cycles
Product CertificationsLROS, RINA, GL, CCC, BV, GOST, UL, DNV, CSA, UKCA
RoHS ComplianceYes
Mercury FreeYes
Toxic Heavy Metal FreeYes
