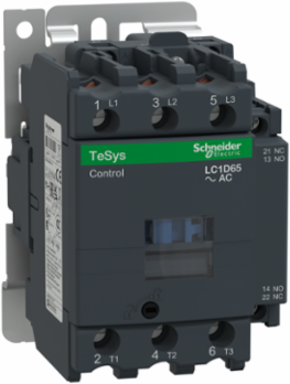

Schneider Electric LC1D65F7 TeSys Deca Contactor 3P, 65A, 110V AC, 85mm Width, IP2X
- MPN: LC1D65F7
- PPN: SCH-LC1D65F7
CAD
$506.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LC1D65F7 TeSys Deca Contactor is an essential component for automation and control applications, designed to handle up to 65A with a 110V AC rating. Its compact 85mm width makes it suitable for installations where space is a premium, while the IP2X rating ensures protection from accidental contact with live parts. This three-pole contactor not only enhances operational efficiency but also provides reliable performance in various industrial settings, making it a vital addition to any NEMA applications requiring effective control of electrical motors and other loads.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 65 A (AC-3 at <= 440 V)
- Control Circuit Voltage
- 110 V DC
- Rated Making Capacity
- 1000 A at 440 V AC
- Thermal Current (Ith)
- 80 A at 60 °C (power circuit)
- Hold-in Power Consumption
- 15 VA at 50 Hz, 7.4 W at 20 °C
- Mechanical Durability
- 10,000,000 cycles
- Insulation Voltage
- 600 V control circuit, 690 V power circuit
- Width
- 85 mm (3.35 in)
- Depth
- 176 mm (6.93 in)
- Mounting
- Rail, Plate
- IP Degree of Protection
- IP2X IEC 60529
- Certifications
- CCC, GOST, CSA, RINA, Lloyds Register, BV, GL, UL, UKCA, DNV
- REACH SVHC Free
- Yes
- Product Type
- Contactor
- Pole Contact Composition
- 3 NO
Rated Operational Voltage<= 690 V AC 25...400 Hz
Maximum Horsepower40 Hp at 480 V AC 60 Hz (3 phase motors)
Rated Breaking Capacity1000 A at 440 V AC
Inrush Power160 VA at 20 °C
Operating Time12...26 ms closing, 50 ms closing, 20 ms opening
Impulse Withstand Voltage8 kV IEC 60947
Overvoltage CategoryIII
Height127 mm (5.00 in)
Weight2.185 kg (4.82 lb)
Material - Flame RetardanceV1 UL 94
StandardsEN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, EN 60947-4-1
RoHS ComplianceCompliant
PVC FreeYes
Poles3P
Control Circuit TypeDC standard
