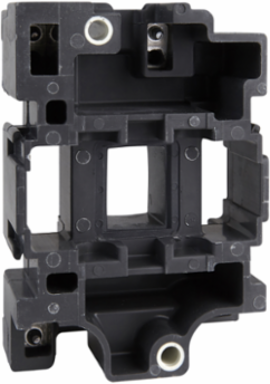

Schneider Electric LX1D6F7 TeSys D Contactor Coil 110V AC 50/60Hz for 80-95A Contactors
- MPN: LX1D6F7
- PPN: SCH-LX1D6F7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D replacement AC coil 110V 50/60Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 26 Ohm 20 °C
- Control Circuit Type
- AC 50/60 Hz
- Range
- TeSys
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Product Compatibility
- LC1D40 || LC1D50 || LC1D65...D95
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
Product Or Component Typecontactor coil
Inductance Of Closed Circuit1.7 H
Mechanical Durability4 Mcycles
Device Short NameLX1D6
Complementary
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <55 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 6-10 W 50/60 Hz
Inrush Power In Va245-245 VA 60 Hz cos phi 0.75 (at 20 °C) || 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-In Power Consumption In Va26-26 VA 60 Hz cos phi 0.3 (at 20 °C) || 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
Net Weight0.28 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Circularity ProfileN/A
