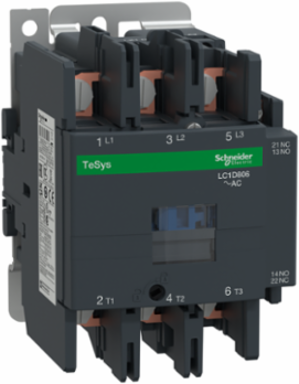

Schneider Electric LC1D806G7 TeSys Deca Contactor 3P 80A 120V AC Coil
- MPN: LC1D806G7
- PPN: SCH-LC1D806G7
CAD
$587.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Deca Contactor by Schneider Electric is engineered to provide reliable performance in automation and control applications. With a robust capacity of 80A at 120V AC, this contactor is designed for efficient operation within NEMA-rated environments, making it an ideal choice for a variety of industrial applications. Its three-pole configuration allows for effective and versatile control of electrical motors and loads, ensuring safety and longevity. Trust in Schneider Electric's industry-leading technology to enhance your power management solutions with this durable and efficient component.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 125 A AC-1, 80 A AC-3, 80 A AC-3e at <= 440 V AC
- Horsepower Rating
- 7.5 Hp at 120 V AC, 15 Hp at 230/240 V AC, 30 Hp at 200-208 V AC (3 phase), 30 Hp at 230/240 V AC (3 phase), 60 Hp at 460/480 V AC, 60 Hp at 575/600 V AC (3 phase)
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 200 A gG at <= 690 V coordination type 1 for power circuit || 160 A gG at <= 690 V coordination type 2 for power circuit
- Inrush Power
- 245 VA
- Operating Time
- 20...35 ms closing || 6...20 ms opening
- Utilisation Category
- AC-3, AC-3e, AC-4, AC-1
- Dimensions (HxWxD)
- 5.00 in x 3.35 in x 5.12 in (127 mm x 85 mm x 130 mm)
- Mechanical Durability
- 4 million cycles
- Tightening Torque
- control circuit 1.2 N.m; power circuit 5 N.m
- Connections - Terminals
- control circuit: lugs-ring terminals 8 mm; power circuit: bars 1 - 3 x 16 mm; power circuit: lugs-ring terminals 17 mm
- Minimum Switching Current
- 5 mA for signalling circuit
- Overvoltage Category
- III
- Impulse Withstand Voltage
- 8 kV IEC 60947
- Flame Retardance
- V1 UL 94
- Safety Reliability Level
- B10d = 1,369,863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20,000,000 cycles contactor with mechanical load EN/ISO 13849-1
- Product Certifications
- BV, LROS, DNV, CSA, GOST, GL, RINA, UL, CCC
- Heat Dissipation
- 6-10 W at 50/60 Hz
- Range Of Product
- TeSys Deca
- Environmental Disclosure
- ENVPEP110205EN
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pvc Free
- Yes
Motor Power22 kW at 220-230 V AC, 37 kW at 380-400 V AC, 45 kW at 415-440 V AC, 55 kW at 500 V AC, 45 kW at 660-690 V AC (AC-3)
Rated Operational Voltagepower circuit <= 300 V DC 25...400 Hz || power circuit <= 690 V AC
Rated Short-Time Withstand Current640 A 40 °C - 10 s for power circuit || 990 A 40 °C - 1 s for power circuit
Control Circuit TypeAC 50/60 Hz
Hold-in Power Consumption26-26 VA 50/60 Hz cos phi 0.3 (at 20 °C)
Maximum Operating Rate3600 cyc/h 60 °C
Pole Count3P
Net Weight3.51 lb (1.59 kg)
Electrical Durability0.8 million cycles AC-1, 1.5 million cycles AC-3, AC-3e
Mounting Supportrail, plate
Minimum Switching Voltage17 V for signalling circuit
Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Pollution Degree3
IP Degree of ProtectionIP20 front face IEC 60529
Operating Temperature Range-40 to 60 °C (normal), 60 to 70 °C with derating
Contact CompatibilityM11
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Auxiliary Contact Composition1 NO + 1 NC
BrandLC1D
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Mercury FreeYes
Toxic Heavy Metal FreeYes
