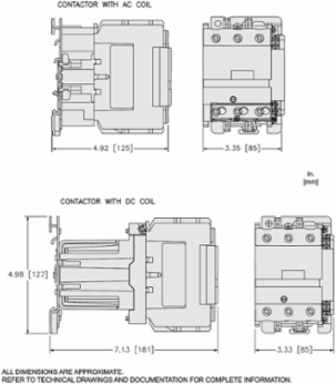

Schneider Electric LC1D80P7 TeSys Deca Contactor 3P 80A 440V AC with 230V Coil
- MPN: LC1D80P7
- PPN: SCH-LC1D80P7
CAD
$587.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). They can be used to create motor starters for almost any type of application. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 230 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Costa Rica, Czechia, France, Indonesia, Philippines, United States
Depth130 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz1...1.1 Uc (55-70 °C):operational AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz standard
- Maximum Motor Phase Current
- 80 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating30 hp at 230/240 V AC 50/60 Hz for 3 phase motors7.5 hp at 120 V AC 50/60 Hz for 1 phase motors15 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors60 hp at 460/480 V AC 50/60 Hz for 3 phase motors, 60 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11100 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Inrush Power In Va
- 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz)shocks contactor open 8 Gn for 11 ms)vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
- Mounting Support
- rail, plate
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- Control Circuit Voltage
- 230 V
- [Ie] Rated Operational Current
- 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
- Hold-in Power Consumption In Va
- 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.21272, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.305
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 81 kg CO2 eq., 80.77
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Installation Carbon Footprint
- 0.305
- End Of Life Carbon Footprint
- 4.0227
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
- Coil Technology
- without built-in suppressor module
- Contact Compatibility
- M11
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 6-10 W at 50/60 Hz
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 96 kg CO2 eq.
- Inf Motor Phase Current
- 80 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 76
- Width Nominal
- 85 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit125 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Package Weight(Lbs)
- 1.566 kg
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 80.562
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -111.06
- Climate Change - Total ( Kg Co2 Eq.) Installation [A5]
- 0.305
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 4.0227
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 15928.9694
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 2.9647
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 15510
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2532.7
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.0814
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 168.4
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 155.67
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -2779.3
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 4.2337
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 2093.6
- Materials For Recycling (Kg) Total Life Cycle
- 1.3502
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 1.1826
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 8.6404
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -92.864
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 9.9545
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 2.9687
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 16944
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2556.3
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1433.9
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -23.541
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 9.9545
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 194.88
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 3.1747
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 208
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 3.3053
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -3.0168
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1433.9
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -20.524
- Water Use (M3 Eq) Operational Energy Use [B6]
- 5.85
- Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]
- -50.203
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability0.8 Mcycles 125 A AC-1 <= 440 V, 1.5 Mcycles 80 A AC-3 <= 440 V, 1.5 Mcycles 80 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw37 kW at 380...400 V AC 50/60 Hz (AC-3e), 45 kW at 415...440 V AC 50/60 Hz (AC-3e), 55 kW at 500 V AC 50/60 Hz (AC-3e), 45 kW at 660...690 V AC 50/60 Hz (AC-3e)22 kW at 220...230 V AC 50 Hz (AC-3)37 kW at 380...400 V AC 50 Hz (AC-3)45 kW at 415...440 V AC 50 Hz (AC-3)55 kW at 500 V AC 50 Hz (AC-3), 45 kW at 660...690 V AC 50 Hz (AC-3), 15 kW at 400 V AC 50 Hz (AC-4)22 kW at 220...230 V AC 50/60 Hz (AC-3e)
Power Dissipation Per Pole5.1 W AC-312.5 W AC-1, 5.1 W AC-3e
Utilisation CategoryAC-3, AC-3e, AC-4, AC-1
Certificate AgencyCCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
[Uc] Control Circuit Voltage230 V, 230 V AC 50/60 Hz
Connections - Terminalscontrol circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable endpower circuit: connector 1 4-50 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]4.0227, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.783
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Manufacturing Carbon Footprint10.783
Use Carbon Footprint80.77
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability4 Mcycles
Operating Time20...35 ms closing6...20 ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1102005EN
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal127 mm
[Icw] Rated Short-time Withstand Current640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ue] Rated Operational Voltagepower circuit <= 300 V DC 25...400 Hzpower circuit <= 690 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]10.678
Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]3.9767
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]10.783
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]80.77
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-111.43
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]204.83
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.1747
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]208
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]2226.9
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]570.43
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-1906.6
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.6385
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.5748
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]73.788
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-188.94
Materials For Recycling (Kg) Installation [A5]0.1676
Net Use Of Fresh Water (M3) Benefits/Loads Beyond System Boundaries [D]-1.169
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7.7665
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle9.9545
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]210.59
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.4025
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]209.11
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.7576
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.1098
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle9.9545
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle15919.0194
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]2.9647
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]15510
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2532.7
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.3053
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.4523
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]1.1098
Water Use (M3 Eq) Manufacturing [A1-a3]4.4756
Water Use (M3 Eq) End Of Life [C1-c4]2.6046
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 96.09342
- Environmental Disclosure
- ENVPEP1102005EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C-40-60 °C60-70 °C with derating
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Climatic WithstandIACS E10 exposure to damp heat
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$587.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$587.72/ EA
Loading add to cart quantity...
