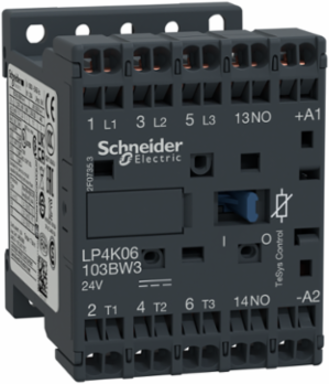

Schneider Electric LP4K06103BW3 TeSys K Contactor, 3P, 6A, 440V, 24V DC Coil, Spring Terminals
- MPN: LP4K06103BW3
- PPN: SCH-LP4K06103BW3
CAD
$106.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys K Contactor from Schneider Electric is a robust solution designed for reliable industrial control applications. With its three-pole configuration and a rating of 6A at 440V, this contactor is well-suited for various switching tasks. It features a 24V DC coil for easy integration into control circuits, and the spring terminals provide a secure and efficient connection, ensuring minimal installation time. This product is an excellent choice for professionals seeking a dependable and efficient contactor that meets demanding operational requirements.
Documentation & Downloads
Specifications
Additional
- Motor Power
- 1.5 kW 220...230 V AC 50/60 Hz AC-3, 2.2 kW 380...415 V AC 50/60 Hz AC-3, 3 kW 440/690 V AC 50/60 Hz AC-3
- Rated Operational Voltage
- <= 690 V AC <= 400 Hz power circuit, signalling circuit
- Rated Breaking Capacity
- 110 A at 220...230 V to 440 V, 80 A at 500 V, 70 A at 660...690 V conforming to IEC 60947
- Thermal Current
- 16 A (at 60 °C) power circuit
- Voltage Insulation
- 600 V UL 508, 690 V IEC 60947-4-1 power circuit; 690 V IEC 60947-4-1, IEC 60947-5-1 signalling circuit
- Poles
- 3P
- Auxiliary Contact Composition
- 1 NO
- Minimum Switching Voltage
- 17 V for signalling circuit
- Mounting
- Rail, Plate
- Maximum Operating Rate
- 3600 cyc/h
- Thermal Current Conventional Free Air
- 16 A (at 60 °C) power circuit
- Inrush Power
- 1.8 W at 20 °C
- Safety Reliability Level
- B10d 1,369,863 cycles nominal load EN/ISO 13849-1
- Electrical Durability
- 1.3 Mcycles 6 A AC-3 <= 440 V
- Net Weight
- 0.235 kg (0.52 lb)
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4
- Ambient Air Temperature for Operation
- -25...50 °C (-13...122 °F)
- Operating Altitude
- 2000 m (6561.68 ft) without derating
- Compliance
- REACh SVHC free, EU RoHS Compliant, China RoHS Compliant, Toxic heavy metal free, Mercury free, RoHS exemption Yes
Amperage6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Rated Making Capacity110 A AC for power and signalling circuit conforming to IEC 60947
Rated Short-Time Withstand Current90 A 1 s for power circuit, also 85 A 5 s, 80 A 10 s, 60 A 30 s, 45 A 1 min, 40 A 3 min, 20 A >=15 min
Associated Fuse Rating25 A gG at <= 440 V for power circuit, 10 A gG for signalling circuit
Overvoltage CategoryIII
Pole Contact Composition3 NO
Minimum Switching Current5 mA for signalling circuit
Connections - TerminalsSpring terminals 0.75...1.5 mm² solid/flexible, without cable end
Operating Time10-20 ms coil de-energisation and NO opening, 30-40 ms coil energisation and NO closing
Coil TechnologyBuilt-in bidirectional peak limiting diode suppressor
Heat Dissipation1.8 W at 20 °C
Hold-in Power Consumption1.8 W at 20 °C
Mechanical Durability30 Mcycles
Dimensions (HxWxD)58 mm x 45 mm x 57 mm (2.28 in x 1.77 in x 2.24 in)
IP Degree of ProtectionIP2X
Product CertificationsCB, CCC, UL, CSA, EAC, CE, UKCA
Ambient Air Temperature for Storage-50...80 °C (-58...176 °F)
Flame RetardanceV1 UL 94
