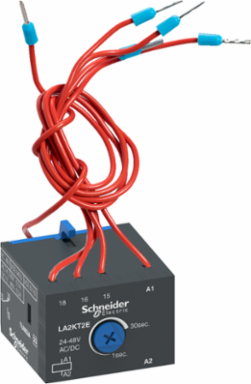

Schneider Electric LA2KT2E TeSys K Electronic Time Delay Auxiliary Contact Block, 1C/O, 1-30s, 24-48V AC/DC
- MPN: LA2KT2E
- PPN: SCH-LA2KT2E
CAD
$149.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- UL || CSA || CE || UKCA
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1
- Rated Operational Voltage Limits
- 0.85...1.1 Uc
- Range Compatibility
- TeSys K LC1K || TeSys K CA2K || TeSys K CA3K || TeSys K CA4K
- Product Name
- TeSys K
- Mounting Location
- front
- Time Delay Range
- 1...30 s
- Device Short Name
- LA1
[Ith] Conventional Free Air Thermal Current2 A for signalling circuit
Timer Typeon delay
[Ue] Rated Operational Voltage24...48 V AC/DC control circuit || 240 V AC signalling circuit
Product Or Component Typetime delay auxiliary contact block
RangeTeSys
Pole Contact Composition1 C/O
Auxiliary Contacts Operationtime delay
Complementary
- Height
- 27 mm
- Net Weight
- 0.04 kg
- Reset Time
- 1.5 s during time delay || 0.5 s after time delay
- Depth
- 38 mm
Insulation Resistance> 10 MOhm
Connections - Terminalsslip-on terminals
Width38 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2106022
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Environmental Characteristic
- normal environment
Ip Degree Of ProtectionIP20 IEC 60529
Protective TreatmentTC IEC 60068
