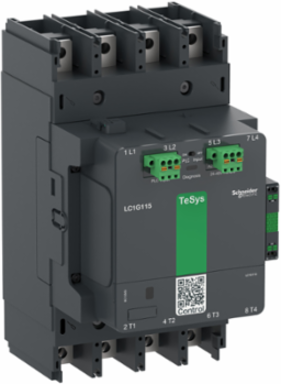

Schneider Electric LC1G1504EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 275A, 4 pole/NO, 48-130VAC/DC coil

MPN: LC1G1504EHEA
PPN: SCH-LC1G1504EHEA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2152.11/ EA

Qty:

Loading add to cart quantity...

Description

Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 275A, 4 pole/NO, 48-130VAC/DC coil

Specifications

Physical Attributes

Color: dark grey

Conformance Attributes

Product Certifications: CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Maximum Operating Rate: 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1

Ie Rated Operational Current: 150 A (at <60 °C) at <= 440 V AC-3, 275 A (at <40 °C) at <= 1000 V AC-1

Ue Rated Operational Voltage: <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Maximum Motor Phase Current: 150 A

Ui Rated Insulation Voltage: 1000 V

Maximum Horse Power Rating40 hp at 200/208 V 60 Hz, 50 hp at 230/240 V 60 Hz, 100 hp at 460/480 V 60 Hz, 125 hp at 575/600 V 60 Hz

Icw Rated Short Time Withstand Current1.2 kA - 10 s, 0.7 kA - 30 s, 0.6 kA - 1 min, 0.45 kA - 3 min, 0.35 kA - 10 min

Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC

Irms Rated Making Capacity1890 A at 440 V

Rated Breaking Capacity1280 A at 440 V

Uimp Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 160 A aM at <= 440 V for motor, 160 A aM at <= 690 V for motor, 315 A gG at <= 690 V, 300 A UL Type J at <= 600 V

Operating Time: 40...70 ms closing, 15...50 ms opening

Safety Reliability Level: B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1

Connections Terminals: control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end

Ie Rated Operational Current: 150 A (at <60 °C) at <= 440 V AC-3, 275 A (at <40 °C) at <= 1000 V AC-1

Carbon Footprint Of The End Of Life Phase C1 To C4: 14.816455843232655, 15 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 1 147 kg CO2 eq., 1147.05

Local Publishable Date: 2025-12-16

Return Indicator: N

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Use Carbon Footprint: 1147.05

Legacy Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2105013

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2121

China Rohs In Scope: No

Without Single Use Plastic: Yes

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Coil Technology: built-in bidirectional peak limiting

Connection Pitch: 35 mm

Device Short Name: LC1G

Halogen Free Status: Halogen free plastic parts product

Hold In Power Consumption In W: 5.0-5.0 W

Inrush Power In W: 190 W

Mounting Support: plate

Overvoltage Category: III

Poles Description: 4P

Product Or Component Type: contactor

Range: TeSys

Returnability: No

Sustainable Packaging: Yes

Total Lifecycle Carbon Footprint: 1 203 kg CO2 eq.

Ith Conventional Free Air Thermal Current: 275 A (at 40 °C)

Warranty In Months: 18

Rated Thermal Current Hv: 275 A

Database Version: 2022-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent internal review

Functional Unit Description: Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.

Functional Unit Unit: Unit

Reference Lifetime In Y2: 20

Energy Model Manufacturing A1 A3 2: Electricity Mix; Production mix; Low voltage; CN

Energy Model Use B6 2: Electricity Mix; Production mix; Low voltage; CN

Recyclability Potential In 2: 55

Height Nominal: 255 mm

Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2: 1146.875

Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2: 18550

Net Use Of Fresh Water M3 Operational Energy Use B6 2: 1.1781

Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2: 1961.75

Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2: 1961.75

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Power Dissipation Per Pole10 W AC-1 - Ith 275 A, 5 W AC-3 - Ith 150 A

Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5

Icw Rated Short Time Withstand Current1.2 kA - 10 s, 0.7 kA - 30 s, 0.6 kA - 1 min, 0.45 kA - 3 min, 0.35 kA - 10 min

Carbon Footprint Of The Distribution Phase A42.023190761205306, 2 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A339 kg CO2 eq., 38.70912627741082

Local Data StatusPublishable

Global Commercial StatusCommercialised

Stocking FlagY

Device TypeLV equipment - LV contactor

TraceabilityYes

Average Life Duration20 year(s)

Weee ScopeIn

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Average Impedance0.00018 Ohm

Compatibility CodeLC1G

Contactor Applicationpower switching

Electrical Durability300 cycles AC-1 400 V

Hold In Power Consumption In Va8.9-8.9 VA

Inrush Power In Va260-260 VA

Mechanical Durability8 Mcycles

Number Of Modules Per Plc Per Pc1

Pole Contact Composition4 NO

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Protective TreatmentTH

Range Of ProductTeSys Giga

Software Versionv5.9.4

Tightening Torque18 N.m

Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rated Thermal Current Ith275 A

Control Circuit Voltage48...130 V

Pep CodeENVPEP2105013EN

Pep Verification Date2025-06-17

Psr VersionPSR-0005-ed2-2016 03 29

Data Sourceextrapolated product

Functional Unit Quantity1

Product Weight In G26951

Energy Consumption On Product Lifetime In Kwh1314

Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN

Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN

Offer Owner Code190788

Width Nominal143 mm

Climate Change Total Kg Co2 Eq Operational Energy Use B6 21147.05

Ecotoxicity Fresh Water Ctue Operational Energy Use B6 221631.25

Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 220511.25

Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 218550

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc

Halogene Performance: Halogen free plastic parts product

Mercury Free: Yes

Ambient Air Temperature For Operation: -25-60 °C

Circularity Profile: ENVEOLI2105013

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106

Take BackNej

Recycled Metal Content At Cr Level0 %

Carbon Footprint1202.5987728818488

Ambient Air Temperature For Storage-60-80 °C

Environmental DisclosureENVPEP2105013EN

Halogen Content PerformanceHalogen free plastic parts product

Packaging Without Single Use PlasticYes

Pep CodeENVPEP2105013EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys Giga

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Specifications

Depth: 193 mm
