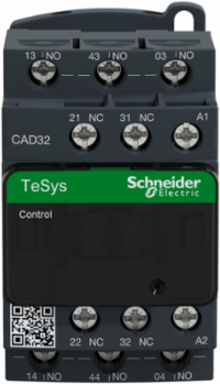

Schneider Electric CAD32M7 TeSys Deca Control Relay 3NO+2NC 10A 690V 220V AC 50/60Hz 45mm Width
Schneider Electric CAD32M7 TeSys Deca Control Relay 3NO+2NC 10A 690V 220V AC 50/60Hz 45mm Width
- MPN: CAD32M7
- PPN: SCH-CAD32M7
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$113.03/ EA
Description
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Features
- The Schneider Electric CAD32M7 is a heavy-duty control relay from the TeSys Deca range. Designed for high-reliability industrial logic, it is used to manage interlocking, signal multiplication, and auxiliary control circuits. Because it shares the same physical frame as the LC1D contactors, it provides a consistent look and feel inside your Canadian control panels.
- The "32" designation specifies its contact arrangement: 3 Normally Open (NO) and 2 Normally Closed (NC) contacts. This versatile configuration is perfect for complex control sequences—for instance, using the 3 NO poles for motor "Run" feedback and the 2 NC poles for "Fault" or "Ready" status indicators.
- The "M7" suffix indicates a 220V AC ($50/60\text{Hz}$) coil. While 120V (G7) is common for control circuits, the 220V/230V coil is frequently found in Canadian pumping stations, irrigation systems, and imported European machinery where the control voltage is derived from two phases of a 208V/240V system or a dedicated 230V transformer.
- One of the CAD32M7's greatest strengths is its modularity. It is fully compatible with front-mounting LADN auxiliary contact blocks. If your project requirements change, you can easily snap on additional contacts (up to 4 more poles) or even a pneumatic time-delay block without removing the relay from the DIN rail.
- The contacts are rated for AC-15 and DC-13 (Pilot Duty), meaning they are specifically designed to switch inductive loads like other contactor coils and solenoids. With a mechanical life of 30 million cycles, this relay is built to withstand the high-vibration and high-cycle demands of Canadian mining and manufacturing facilities.
Specifications
- Rated Operational Voltage
- <= 690 V AC 25...400 Hz
- Conventional Free Air Thermal Current
- 10 A (at 60 C)
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Rated Short-Time Withstand Current
- 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
- Rated Insulation Voltage
- 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
- Mounting Support
- Plate, Rail
- Height
- 77 mm (3.03 in)
- Depth
- 84 mm (3.31 in)
- Pole Contact Composition
- 3 NO + 2 NC
- Protective Treatment
- TH IEC 60068
- Ambient Air Temperature for Storage
- -60 to 80 B0C (-76 to 176 B0F)
- Mechanical Robustness
- Shocks: 10g/11 ms (open), 15g/11 ms (closed); Vibrations: 2g/5–300 Hz (open), 4g/5–300 Hz (closed) IEC 60068
- Operating Time
- 12–22 ms coil energisation NO closing; 4–12 ms coil de-energisation NO opening; 4–19 ms coil energisation NC opening; 6–17 ms coil de-energisation NC closing
- Inrush Power
- 70 VA 50 Hz (20 B0C)
- Minimum Switching Voltage
- 17 V
- Non-Overlap Time
- 1.5 ms on energisation and de-energisation between NC and NO
- Standards
- EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
- RoHS Compliance
- Compliant with exemptions
- Warranty
- 18 months
Control Circuit Voltage220 V AC 50/60 Hz
Operational CategoriesAC-15, DC-13, AC-14
Rated Making Capacity140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
Associated Fuse Rating10 A gG IEC 60947-5-1
Tightening Torque1.2 N.m screw clamp terminals Philips No 2, flat D8 6 mm, pozidriv No 2
Connections - TerminalsScrew clamp terminals 1 & 2, 1-4 mmB2 flexible/solid with or without cable end
Width45 mm (1.77 in)
Net Weight0.58 kg (1.28 lb)
IP Degree of ProtectionIP2X front face VDE 0106
Ambient Air Temperature for Operation-40 to 60 B0C; 60 to 70 B0C with derating (-40 to 140 B0F)
Operating Altitude0 to 3000 m (0 to 9843 ft)
Mechanical Durability30 Mcycles
Maximum Operating Rate180 cycles/min
Hold-In Power Consumption8 VA 50 Hz (20 B0C)
Minimum Switching Current5 mA
Insulation Resistance> 10 MOhm
Product CertificationsCB, CCC, UL, CSA, EAC, CE, UKCA
Mercury FreeYes
Country of OriginIndonesia
