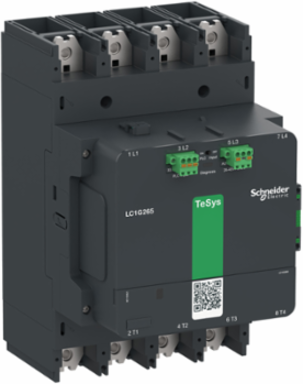

Schneider Electric LC1G2654EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 385A, 4 pole/NO, 48-130VAC/DC coil
Schneider Electric LC1G2654EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 385A, 4 pole/NO, 48-130VAC/DC coil
- MPN: LC1G2654EHEA
- PPN: SCH-LC1G2654EHEA
- UNSPSC: 39121529
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3895.35/ EA
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
- IE Rated Operational Current
- 265 A (at <60 °C) at <= 440 V AC-3, 385 A (at <40 °C) at <= 1000 V AC-1
- UE Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Maximum Motor Phase Current
- 265 A
- UI Rated Insulation Voltage
- 1000 V
Maximum Horse Power Rating75 hp at 200/208 V 60 Hz, 100 hp at 230/240 V 60 Hz, 200 hp at 460/480 V 60 Hz, 200 hp at 575/600 V 60 Hz
ICW Rated Short Time Withstand Current2.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min
UC Control Circuit Voltage48...130 V AC 50/60 Hz, 48...130 V DC
IRMS Rated Making Capacity3320 A at 440 V
Rated Breaking Capacity2380 A at 440 V
UIMP Rated Impulse Withstand Voltage8 kV
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 315 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 450 A UL Type J at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
- IE Rated Operational Current
- 265 A (at <60 °C) at <= 440 V AC-3, 385 A (at <40 °C) at <= 1000 V AC-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 22.490062667522334, 22 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 988 kg CO2 eq., 1988.2199999999998
- Auxiliaries
- LAG8N113P, LAG8N113, LAG8N203P, LAG8N203
- Local Publishable Date
- 2025-12-27
- Serviceability
- No
- Field Service Division
- PPIBS
- WEEE Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 5 - INITIALIZED WITH DataSCAN OK (Migration)
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting
- Contactor Application
- power switching
- Electrical Durability
- 300 cycles AC-1 400 V
- Hold In Power Consumption In VA
- 11.7-11.7 VA
- Inrush Power In VA
- 430-430 VA
- Mechanical Durability
- 8 Mcycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys Giga
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 2 073 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Relationship Type
- Compatible relationship
- Pep Verification Date
- 2025-06-17
- PSR Version
- PSR-0005-ed2-2016 03 29
- Rated Thermal Current Ith
- 385 A
- Functional Unit Unit
- Unit
- Product Manager
- SHUREN ZHANG
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole20 W AC-1 - Ith 385 A, 11 W AC-3 - Ith 265 A
ICW Rated Short Time Withstand Current2.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min
Carbon Footprint Of The Distribution Phase A43.0710236975222536, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A359 kg CO2 eq., 58.75701213537067
Connections Terminalspower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function Option IdSTANDARD
Average Impedance0.000144 Ohm
Compatibility CodeLC1G
Device Short NameLC1G
Halogen Free StatusHalogen free plastic parts product
Hold In Power Consumption In W9.0-9.0 W
Inrush Power In W360 W
Package Weight Lbs11.3 kg
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Tightening Torque35 N.m
Variantadvanced
ITH Conventional Free Air Thermal Current385 A (at 40 °C)
Pep CodeENVPEP2105013EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Compliant with Exemptions
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2105013EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationProduct out of China RoHS scope. Substance declaration for your information.
Carbon Footprint2072.538098500415
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
