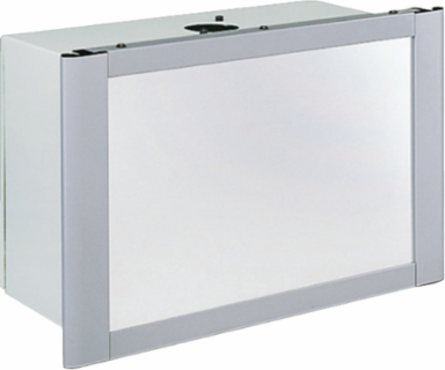

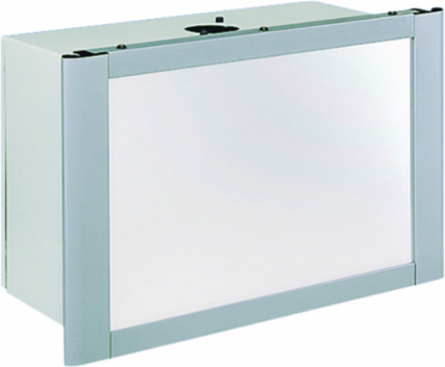

Schneider Electric NSYS3CM406025 PanelSeT S3CM Control Enclosure 400 mm H, 600 mm W, IP54, IK10
- MPN: NSYS3CM406025
- PPN: SCH-NSYS3CM406025
CAD
$982.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for robust human-machine dialogue applications, the Schneider Electric PanelSeT S3CM enclosure combines functionality with durability. With a solid construction featuring a steel body and aluminum trim, this control enclosure is not only aesthetically pleasing in its RAL 7035 light gray finish but also meets stringent protection standards with an IP54 rating against dust and water ingress and an IK10 rating for impact resistance. Measuring 400 mm in height, 600 mm in width, and 250 mm in depth, it offers a versatile rear door access and a reversible opening mechanism, making it adaptable to various installation environments. Weighing in at 16.7 kg, this enclosure is designed for ease of use and installation, ensuring that it can withstand the rigors of industrial applications while providing a secure and reliable interface for your equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain
Physical Attributes
- Color
- enclosure Gray RAL 7035)front face Gray RAL 7040)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height400 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door with lock2 rail, 1 reinforcement plate, 1 front trim frame, 1 cable gland plate
- Carbon Footprint Of The Distribution Phase [A4]
- 30.871767730188463, 31 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 3.0636150473220454, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- single piece body
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Material
- enclosure and front face steeltrim frame aluminium
- Number Of Doors
- rear 1
- Product Destination
- interface
- Product Or Component Type
- control enclosure
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 146 kg CO2 eq.
- Pep Code
- ENVPEP1001004EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- UL
- Package Weight(Lbs)
- 15.550 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hingestrim frame by screws, 2 rails by screws, cable gland plate by screws
Carbon Footprint Of The End-of-life Phase [C1 To C4]37 kg CO2 eq., 36.63353205990608
Carbon Footprint Of The Manufacturing Phase [A1 To A3]76 kg CO2 eq., 75.92438425652341
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationhuman-machine dialogue application
Door TypeSolid
Lock Type3 mm double-bar lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product NamePanelSeT S3CM
RangePanelSeT
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platestandard
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 146.49329909394
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP54 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- control enclosure
ETIM
- ETIM 8
- EC002504
ETIM 9EC002504
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
