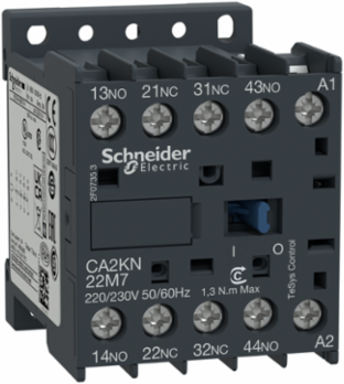

Schneider Electric CA2KN22T7 TeSys K Control Relay, 2NO+2NC, 10A, 480V AC Coil, IP2X
- MPN: CA2KN22T7
- PPN: SCH-CA2KN22T7
CAD
$128.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys K Control Relay, 2NO+2NC, 10A, 480V AC Coil, IP2X
Documentation & Downloads
Specifications
Key Specifications
- Control Circuit Type
- AC
- Contactor Application
- control circuit
- Product Name
- TeSys CAK
- Pole Contact Composition
- 2 NO + 2 NC
- Coil Technology
- without integral suppression device
- Device Short Name
- CA2K
[Uc] Control Circuit Voltage480 V AC 50/60 Hz
Product Or Component Typecontrol relay
RangeTeSys
Connections - Terminals1 x 0.34-1.5 mm²flexible with cable end || 1 x 0.34-2.5 mm²flexible with cable end || 1 x 0.75-0.75 mm²flexible without cable end || 1 x 1.5-1.5 mm²solid || 2 x 4-4 mm²flexible without cable end || 2 x 4-4 mm²solid
Utilisation CategoryAC-15
Coil Typestandard
Complementary
- Non Overlap Distance
- 0.5 m
- [Ue] Rated Operational Voltage
- <= 690 V AC <= 400 Hz
- Control Circuit Voltage Limits
- drop-out: <= 0.2 Uc at 50/60 Hz (at <50 °C) || operational: 0.8...1.15 Uc at 50/60 Hz (at <50 °C)
- Insulation Resistance
- > 10 MOhm
- Net Weight
- 0.18 kg
- [Ui] Rated Insulation Voltage
- 690 V BS 5424 || 690 V IEC 60947 || 750 V VDE 0110 group C || 600 V CSA C22.2 No 14
- Maximum Operating Rate
- 10000 cyc/h 20 °C
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing || 15...25 ms coil de-energisation and NC closing || 5...15 ms coil energisation and NC opening
- Depth
- 57 mm
- Minimum Switching Voltage
- 17 V
Non-Overlap Time1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
Height58 mm
[Ith] Conventional Free Air Thermal Current10 A (at 50 °C)
Associated Fuse Rating10 A gG <= 690 V IEC 60947 || 10 A gG <= 690 V VDE 0660
Inrush Power In Va30-30 VA (at 20 °C)
Flame Retardanceclass C2 NF F 16-101 || class C2 NF F 16-102 || V1 UL 94
Minimum Switching Current5 mA
Hold-In Power Consumption In Va4.5-4.5 VA (at 20 °C)
Width45 mm
Tightening Torque0.8-1.3 N.m screw clamp terminals 1.5-4 mm² Philips M6
Environment
- Product Certifications
- UL || CSA || UKCA
- Standards
- VDE 0660 || NF C 63-140 || IEC 60947 || BS 5424
- Shock Resistance
- 10 gn control relay open || 15 gn control relay closed
- Ip Degree Of Protection
- IP2X VDE 0106
- Protective Treatment
- TC IEC 60068
- Heat Dissipation
- 1.3-1.3 W 50/60 Hz
Ambient Air Temperature For Operation-25-50 °C
Immunity To Microbreaks2 ms
Vibration Resistance2 gn 5-300 Hz control relay open || 4 gn 5-300 Hz control relay closed
Ambient Air Temperature For Storage-50-80 °C
Operating Altitude2000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
