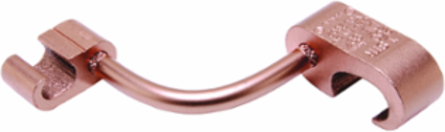

Burndy YGL34C29 Copper Compression Connector 250-500 kcmil for 5/8-3/4 Inch Ground Rod
- MPN: YGL34C29
- UPC: 781810220047
- PPN: BUR-279026
CAD
$287.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Cross Grid Connector, 250 kcmil - 500 kcmil or 5/8" - 3/4" Ground Rod or # 5 - 6 Rebar, 2 AWG (Str.) - 250 kcmil.
Documentation & Downloads
Specifications
Additional
- Conductor - Copper Str Size A Range
- 250 kcmil-500 kcmil
- Conductor - Rebar Size A Range
- 5 - 6
- Dimension - Length Overall
- 2.50 in (64 mm)
- Dimension - D
- 0.50 in
- Material
- Copper
- Oxide Inhibitor Type
- Penetrox E
- Plating Type
- Unplated
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Listed
- Yes
- Die Index
- 997, 998
Conductor - Copper Str Size B2 AWG, 1 AWG, 1/0, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil
Conductor - Rod Size A Range5/8 in - 3/4 in
Dimension - B Length0.75 in (3/4 in)
Dimension - Pad Width2.09 in
Connector TypeTap
Prefilled Oxide InhibitorYes
ApplicationDirect Burial In Earth And Concrete
Certification - CSA ApprovedYes
StandardsUL467, IEEE 837, RoHS CM
