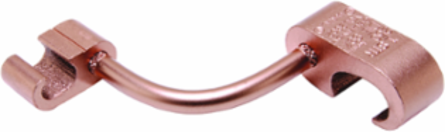

Burndy YGL34C34 Copper Compression Connector, 250-500 kcmil, 5/8-3/4 Inch Ground Rod
- MPN: YGL34C34
- UPC: 781810220054
- PPN: BUR-279027
CAD
$287.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Cross Grid Connector, 250 kcmil - 500 kcmil or 5/8" - 3/4" Ground Rod or # 5 - 6 Rebar, 250 kcmil - 500 kcmil.
Documentation & Downloads
Specifications
Additional
- Material
- Copper
- Connector Type
- Tap
- Oxide Inhibitor Type
- Penetrox E
- Plated
- No
- Conductor Copper Strand Size Range B
- 250 kcmil-500 kcmil
- Conductor Rod Size Range
- 5/8 in-3/4 in
- Dimension B Length
- 1.10 in (1-1/9 in)
- Dimension Pad Width
- 2.28 in
- Plating Type
- Unplated
- Certification UL Listed Direct Burial
- Yes
- Certification ETL
- No
- Standards
- UL467, IEEE 837
- Trade Name
- HYGRID
ApplicationDirect Burial In Earth And Concrete
Die Index1011
Prefilled Oxide InhibitorYes
Conductor Copper Strand Size Range A250 kcmil-500 kcmil
Conductor Rebar Size Range5-6
Dimension Length Overall2.50 in (64 mm)
Dimension D0.75 in
TypeTaps
Certification CSA ApprovedYes
Certification UL ListedYes
Certification cULusNo
Standards RoHS Compliance StatusCM
