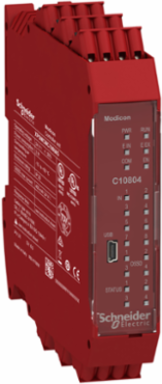

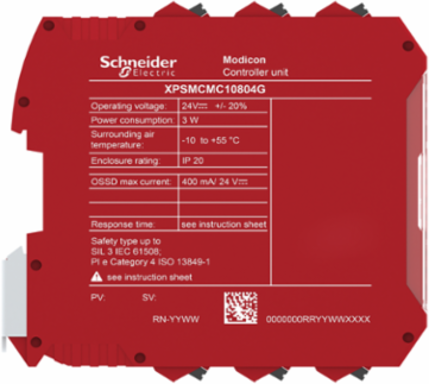

Schneider Electric XPSMCMC10804G Modicon MCM Safety Controller, 8 Inputs, 4 Outputs, IP20, 24V DC
- MPN: XPSMCMC10804G
- PPN: SCH-XPSMCMC10804G
CAD
$1094.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon MCM Safety Controller, 8 Inputs, 4 Outputs, IP20, 24V DC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 114.5 mm |
|---|
Complementary Attributes
| Integrated Connection Type | backplane expansion bus, USB 2.0 port |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cable Cross Section | 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-1.5 mm² - 23 AWG...16 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end |
| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel |
| Safety Reliability Data | PFHd = 1.35E-8 1/h high, DC > 99 %, MTTFd < 100 years |
| Certificate Agency | TÜV, RCM, cULus |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2030 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Data Storage Equipment | SD card optional) |
| Electrical Connection | spring terminal |
| Inductive Load | 2.4 mH |
| Load Capacitance | 0.82 µF |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | No |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 22.5 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Function Of Module | light curtain monitoring EN/ISO 14119, emergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1switch monitoring EN 574, two-hand control EN/ISO 14119safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions |
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061 |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Connections - Terminals | 2 spring terminals, removable terminal block, 1 spring terminals, removable terminal block |
| Local Publishable Date | 2025-11-25 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Device Short Name | XPSMCM |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Power Dissipation In W | 3 W |
| Product Or Component Type | safety controller CPU |
| Range Of Product | Modicon Safety automation |
| Service Life | 20 year(s) |
| Sustainable Packaging | No |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 61800-5-1 |
| Maximum Number Of I/O Expansion Module | 14 128 input14 32.0 output |
| Package Weight(Lbs) | 261.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
General Attributes
| Product Or Component Type | safety controller CPU |
|---|
| Range Of Product | Modicon Safety automation |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Number Of Outputs | safety outputs OSSD contactor/drive connection test line control outputs configurable diagnostic connection, 4 |
|---|---|
| Discrete Output Type | PNP |
| Discrete Output Current | 400 mA |
|---|
Input Attributes
| Discrete Input Type | safety input, PNP |
|---|---|
| Discrete Input Current | 400 mA |
| Number Of Inputs | 8.0 digital input connection4.0 digital interlock start/restart or external device monitoring |
| Synchronisation Time Between Inputs | < 0.5 ms, < 0.5 ms |
|---|---|
| Discrete Input Voltage | 24 V |
