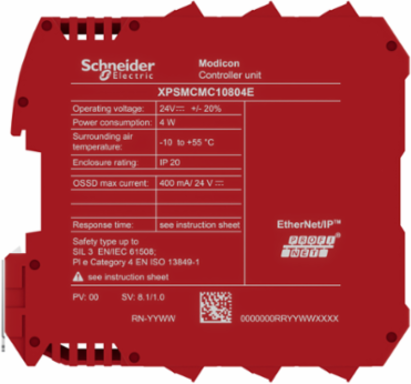

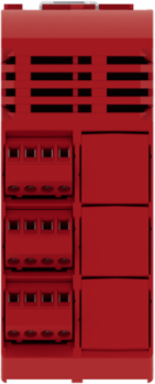

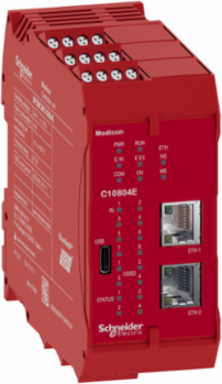

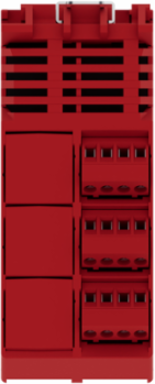

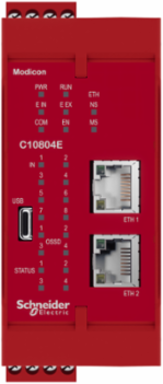

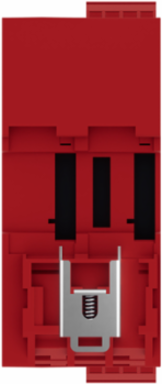

Schneider Electric XPSMCMC10804E Safety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, screw
Schneider Electric XPSMCMC10804E Safety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, screw
- MPN: XPSMCMC10804E
- PPN: SCH-XPSMCMC10804E
- UNSPSC: 32151705
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1135.83/ EA
Description
Safety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, screw
Features
- Designed to provide safety solutions requiring a Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508
- Designed specifically to meet the 6 main safety functions required on machines
- An extensive range of safety products designed to provide protection for personnel and equipment
- Designed from standalone components to integrate safety network solutions
Specifications
Conformance Attributes
- Product Certifications
- TÜV, RCM, cULus
StandardsIEC 61496-1, ISO 13849-1, IEC 61508, IEC 61800-5-1, IEC 62061
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus, USB 2.0 port
Maximum Number Of I O Expansion Module14 128 input, 14 32.0 output
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-1.5 mm² - AWG 23...AWG 16 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
- Function Of Module
- light curtain monitoring EN/ISO 14119, emergency stop ISO 13850, guard monitoring EN/ISO 14119, enabling switch monitoring IEC 60947-5-1, light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1, switch monitoring EN 574, two-hand control EN/ISO 14119, safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, type 4 IEC 61496-1, SILCL 3 IEC 62061, can reach SILCL 1 ISO 13849-1
- Carbon Footprint Of The Distribution Phase A4
- 0.04406, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.2 kg CO2 eq., 0.21601
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 287 kg CO2 eq., 287.23
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-06-27
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Device Short Name
- XPSMCM
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Package Weight Lbs
- 352.000 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- Yes
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Total Lifecycle Carbon Footprint
- 310 kg CO2 eq.
- Uimp Rated Impulse Withstand Voltage2
- 4 kV IEC 61800-5-1
- Connections Terminals
- 6 captive screw terminals, removable terminal block
- Stocking Flag
- Y
- Pep Code
- ENVPEP2403021EN
- Pep Verification Date
- 2023-11-30
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To monitor and proccess safety sensor signals and provide status information on fieldbusses at 4W during 10 years with a 100% use rate.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; IT
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Inductive Load
- 2 mH
- Connections Terminals3
- 6 captive screw terminals, removable terminal block
- Us Rated Supply Voltage5
- 24 V - 20...20 % DC
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Local Signalling1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable, 8 LEDs yellow IN input status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output channel, 1 LED green/red MS module status, 1 LED green/red NS network status
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Carbon Footprint Of The End Of Life Phase C1 To C40.41098, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A323 kg CO2 eq., 22.586
Safety Reliability Datahigh, DC > 99 %
Local Publishable Date2026-01-12
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403021EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Data Storage EquipmentSD card optional)
Electrical Connectionscrew terminal
Load Capacitance0.82 µF
Overvoltage CategoryII
Power Dissipation In W3 W
Product Or Component Typesafety controller CPU
Range Of ProductModicon MCM
Service Life20 year(s)
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Us Rated Supply Voltage224 V - 20...20 % DC
Medium DescSafety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, screw
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Data Sourcereferent product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Uimp Rated Impulse Withstand Voltage54 kV IEC 61800-5-1
Environment Attributes Main
- Take Back
- Nej, No
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 310.48705
- Ambient Air Temperature For Storage
- -20-85 °C
- Environmental Disclosure
- ENVPEP2403021EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Relative Humidity
- 10-95 %
- Pep Verification Date
- 2023-11-30
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Ambient Air Temperature For Operation-10-55 °C
Circularity ProfileENVEOLI2403021EN
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2403021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
General Attributes
- Product Or Component Type
- safety controller CPU
Range Of ProductModicon MCM
Output Attributes
- Number Of Outputs
- 4 safety outputs OSSD contactor/drive connection, 4 test line control outputs, 4 configurable diagnostic connection, 4
- Discrete Output Type
- PNP or NPN
Discrete Output Current400 mA
Input Attributes
- Discrete Input Type
- safety input, NPN or PNP
- Discrete Input Current
- 100 mA
- Synchronisation Time Between Inputs
- < 0.5 ms
Number Of Inputs8 digital input connection, 4 digital interlock start/restart or external device monitoring
Discrete Input Voltage24 V
Specifications

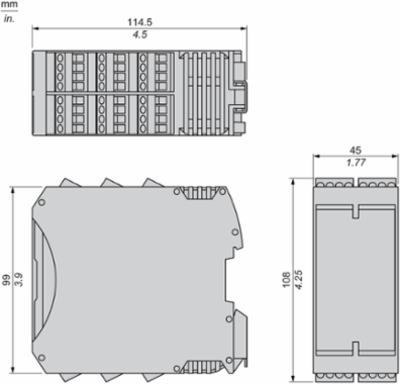

- Depth
- 114.5 mm
