Schneider Electric

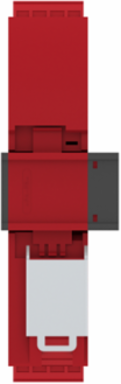

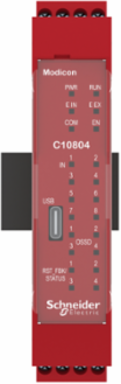

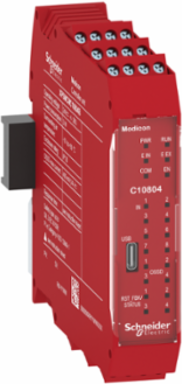

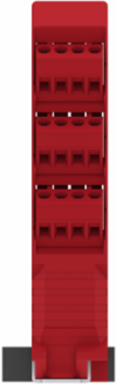

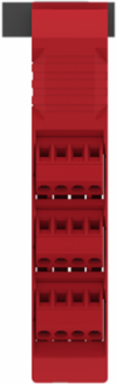

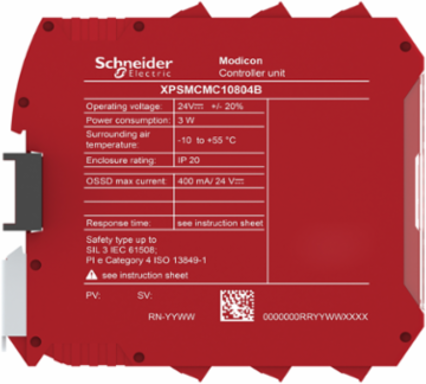

Schneider Electric XPSMCMC10804B Modicon MCM Safety Controller, 8 Inputs, 4 Outputs, IP20, 24V DC

  • MPN: XPSMCMC10804B
  • PPN: SCH-XPSMCMC10804B
  • UNSPSC: 32151705

CAD

$1146.06

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Modicon MCM Safety Controller, 8 Inputs, 4 Outputs, IP20, 24V DC

Features

  • Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
  • Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
  • Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
  • Modicon MCM safety controller are designed for monitoring multiple safety functions
  • Increase profitability: Safety designed from standalone components to embedded safety network solutions
  • Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
  • Simplify integration: Wide range of connections for machine controllers

Documentation & Downloads

Specifications

Key Specifications

Country of OriginItaly
Depth114.5 mm
Weight155 g

Complementary Attributes

Integrated Connection Typebackplane expansion bus, USB 2.0 port
Us Rated Supply Voltage24 V - 20...20 % DC
Uimp Rated Impulse Withstand Voltage4 kV IEC 61800-5-1

Important Information Attributes

Persona Type IdsEU, OM, OM8
Cable Cross Section0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-1.5 mm² - 23 AWG...16 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
Kit Composition1 safety controller CPU, 1 backplane expansion connector
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Certificate AgencyTÜV, RCM, cULus
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.189060070042144
Carbon Footprint Of The Manufacturing Phase A1 To A310 kg CO2 eq., 10.390069448566509
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint143.615
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Short NameXPSMCM
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Power Dissipation In W3 W
Product Or Component Typemodular safety controller CPU kit
Range Of ProductModicon Safety automation
Service Life20 year(s)
Software Versionv5.9.4
Total Lifecycle Carbon Footprint154 kg CO2 eq.
Database Version2022-01
Height Nominal99 mm
Maximum Number Of I/O Expansion Module14 128 input14 32.0 output
Customs Code8537109170
Functional Unit DescriptionTo monitor and proccess safety sensor signals and provide status information on fieldbusses at 4W during 10 years with a 100% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh350.4
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Modulelight curtain monitoring EN/ISO 14119, emergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1switch monitoring EN 574, two-hand control EN/ISO 14119safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel
Safety Reliability DataPFHd = 1.35E-8 1/h high, DC > 99 %, MTTFd < 100 years
Connections Terminals2 captive screw terminals, removable terminal block, 1 captive screw terminals, removable terminal block
Carbon Footprint Of The Distribution Phase A40.020268593814922537, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.09936947230961002, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6144 kg CO2 eq., 143.615
Local Publishable Date2025-11-25
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2030
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Data Storage EquipmentSD card optional)
Electrical Connectionscrew terminal
Inductive Load2.4 mH
Load Capacitance0.82 µF
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Width Nominal22.5 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10

Environment Attributes Main

Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2403021_V1
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2403021_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint154.31376758473317
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-09-28
Psr Version0

General Attributes

Product Or Component Typemodular safety controller CPU kit
Range Of ProductModicon Safety automation

ETIM

ETIM 8EC001449
ETIM 10EC001449
ETIM 9EC001449

Output Attributes

Number Of Outputssafety outputs OSSD contactor/drive connection test line control outputs configurable diagnostic connection, 4
Discrete Output TypePNP
Discrete Output Current400 mA

Input Attributes

Discrete Input Typesafety input, PNP
Discrete Input Current400 mA
Number Of Inputs8 digital input connection4 digital interlock start/restart or external device monitoring
Synchronisation Time Between Inputs< 0.5 ms, < 0.5 ms
Discrete Input Voltage24 V
Modicon MCM Safety Controller, 8 Inputs, 4 Outputs, IP20, 24V DC
