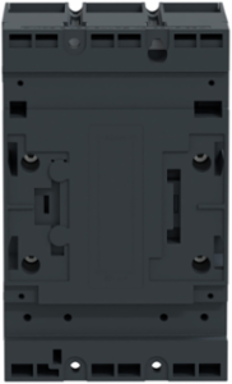

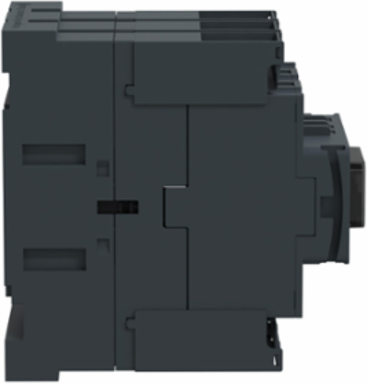

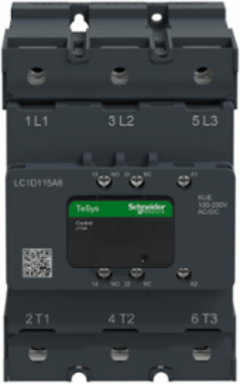

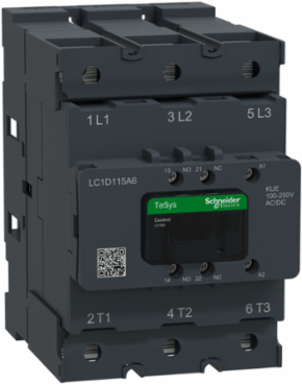

Schneider Electric LC1D115A6KUE Contactor, Tesys Deca Advanced, 3P(3NO), 75hp at 480V, 115A, 100-250V AC/DC coil,lugs-ring or bars
- MPN: LC1D115A6KUE
- PPN: SCH-LC1D115A6KUE
CAD
$318.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca Advanced contactor, 3 poles (3NO) for motor control applications up to 75hp at 480V, 160A general purpose It is equipped with a 100-250V AC/DC wide-band electronic coil that has lower power consumption, along with integrated 1NO+1NC auxiliary contacts. It can be installed in any orientation, and LRD43 could be directly mounted below contactor. The operating temperature range is between -40°C and 70°C, and it can be installed at altitudes of up to 3000m without derating. It is designed for demanding applications with improved performance under harsh environment including salt-mist, dust and high shock. The dimension is 152mm x 99mm x 155mm (H x W x D). Compact size enables panel space savings. Simple wiring with all front access to control circuit enhances accessibility and safety.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China

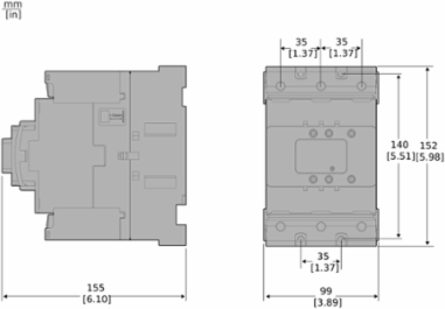

Depth155 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, DC, AC 50/60 Hz, DC
- Irms Rated Making Capacity
- 1560 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1
- Maximum Motor Phase Current
- 115 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.8 Uc Min...1.1 Uc Max (-40-60 °C):operational AC/DC0.1 Uc Max (-40-60 °C):drop-out AC/DC
Maximum Horse Power Rating30 hp at 200/208 V 60 Hz40 hp at 230/240 V 60 Hz75 hp at 460/480 V 60 Hz100 hp at 575/600 V 60 Hz
Maximum Operating Rate2400 cyc/h at 60 °C3600 cyc/h at Uc at 20 ºC
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 55 kW at 400 V AC 50/60 Hz (AC-3e), 59 kW at 415 V AC 50/60 Hz (AC-3e), 75 kW at 440 V AC 50/60 Hz (AC-3e), 75 kW at 500 V AC 50/60 Hz (AC-3e), 80 kW at 690 V AC 50/60 Hz (AC-3e), 65 kW at 1000 V AC 50/60 Hz (AC-3e)55 kW at 400 V AC 50/60 Hz (AC-4), 55 kW at 440 V AC 50/60 Hz (AC-4)65 kW at 690 V AC 50/60 Hz (AC-4), 30 kW at 230 V AC 50/60 Hz (AC-3)55 kW at 400 V AC 50/60 Hz (AC-3)59 kW at 415 V AC 50/60 Hz (AC-3)75 kW at 440 V AC 50/60 Hz (AC-3), 75 kW at 500 V AC 50/60 Hz (AC-3)80 kW at 690 V AC 50/60 Hz (AC-3)65 kW at 1000 V AC 50/60 Hz (AC-3), 30 kW at 230 V AC 50/60 Hz (AC-3e), 30 kW at 230 V AC 50/60 Hz (AC-4), 63 kW at 500 V AC 50/60 Hz (AC-4), 50 kW at 1000 V AC 50/60 Hz (AC-4)
- Tightening Torque
- power circuit 12 N.m bars hexagonal 13 mm M8control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Control Circuit Voltage
- 100...250 V
- [Ie] Rated Operational Current
- 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4.979688988919771, 5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 24 kg CO2 eq., 23.625762873530803
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2408027
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.45 mOhm - Ith 200 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-11
- Inrush Power In Va
- 170-170 VA (at 20 °C)
- Mechanical Durability
- 8 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- noneIEC 60068-2-30
- Range Of Product
- TeSys Deca Advanced
- Safety Reliability Level
- B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 309 kg CO2 eq.
- Connections Terminals
- lugs-ring terminals
- Pep Code
- ENVPEP2408027EN
- Pep Verification Date
- 2025-08-12
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 78
- Width Nominal
- 99 mm
- [Ith] Conventional Free Air Thermal Current
- 200 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Hold-in Power Consumption In W
- 4.5-4.5 W 20 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1 Mcycles 115 A AC-3 <= 440 V, 1 Mcycles 115 A AC-3e <= 440 V, 0.5 Mcycles 200 A AC-1 <= 440 V
Mechanical Robustnessvibrations contactor open 2 Gn, 5...300 Hz) IEC 60068-2-6vibrations contactor closed 4 Gn, 5...300 Hz) IEC 60068-2-6, shocks contactor open 10 Gn for 11 ms) IEC 60068-2-27, shocks contactor closed 15 Gn for 11 ms) IEC 60068-2-27
Power Dissipation Per Pole6 W AC-3, 6 W AC-3e22 W AC-1
Utilisation CategoryAC-3, AC-3e, AC-1, AC-4, DC-1, DC-3, DC-5
Certificate AgencyCB Scheme, CCC, cULus, CE, UKCA, EU-RO-MR by DNV-GL
[Uc] Control Circuit Voltage100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable endlugs-ring terminals, power circuit: lugs-ring terminals - external diameter: 25 mm, power circuit: bars 1 - busbar cross section: 5 x 25 mm, power circuit: bars 2 - busbar cross section: 5 x 25 mm, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.3648456602261538, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.26500121783967584
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]280 kg CO2 eq., 280.0538148162723
Local Publishable Date2026-07-01
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating125 A aM at <= 440 V for power circuit100 A aM at <= 690 V for power circuit200 A gG at <= 690 V for power circuit10 A gG for signalling circuit0.2 A gG for control circuit
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Device Short NameLC1D
Heat Dissipation1.1-1.1 W at 20 °C
Inrush Power In W105-105 W 20 °C)
Mounting Supportplate
Operating Time25...90 ms opening20...90 ms closing
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys Deca
ReturnabilityNo
Signalling Circuit Frequency16.67...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current115 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 yearsEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts 3O, a rated voltage up to 1000V, a rated current AC3 115A, a control circuit voltage 100-250VAC/DC, with 3 poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh683.28
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal152 mm
[Icw] Rated Short-time Withstand Current350 A 40 °C - 10 min for power circuit600 A 40 °C - 1 min for power circuit1280 A 40 °C - 10 s for power circuit1800 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 16.67...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va8-8 VA (at 20 °C)
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)2.39 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C operation, -40-60 °C operation, -60-80 °C storage, -60-80 °C storage-40-60 °C operation, -40-60 °C operation60-70 °C with derating, -60-80 °C storage, -60-80 °C storage
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2408027
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-12
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint309.28911355678866
Environmental DisclosureENVPEP2408027EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude0...9842.52 ft (0...3000 m) without derating
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2408027EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca Advanced
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
