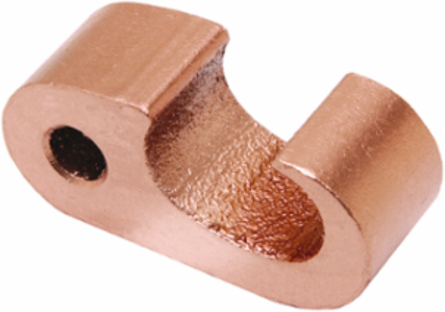

Burndy YGHP34C2 Copper Compression Ground Rod Connector, 5/8 Inch - 3/4 Inch Rod Dia., 4 AWG - 2 AWG
- MPN: YGHP34C2
- UPC: 781810220955
- PPN: BUR-279102
CAD
$126.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Ground Rod Connector, #4 Sol - #2 Str, 5/8" - 3/4" Rod Dia.
Documentation & Downloads
Specifications
Additional
| Material | Copper |
|---|---|
| Number of Crimps Required | 1 |
| Copper Solid Tap Size Range | 4 AWG - 2 AWG |
| Rebar Size Range | #5 - #6 |
| Plated | No |
| Oxide Inhibitor Type | Penetrox E |
| Application | Direct Burial In Earth And Concrete |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - cULus | No |
| RoHS Compliance Status | CM |
| Connector Type | Tap |
|---|---|
| Length | 0.75 in |
| Copper Stranded Run Size Range | 250 kcmil - 500 kcmil |
| Ground Rod Size | 5/8 in - 3/4 in |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Yes |
| UL Listed | Yes |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Standards Met | UL467, IEEE 837, IEEE 837 2014 Qualified |
