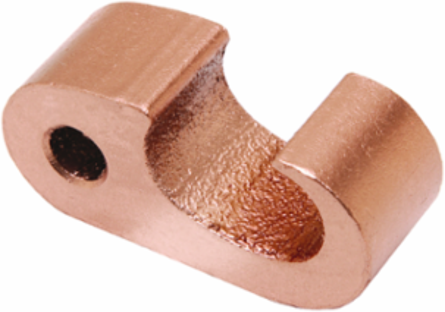

Burndy YGHP34C29 Copper Compression Ground Rod Connector, 3/0 Str - 250 Kcmil, 5/8 Inch - 3/4 Inch Rod Dia.
- MPN: YGHP34C29
- UPC: 781810220979
- PPN: BUR-279104
CAD
$126.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Ground Rod Connector, 3/0 Str - 250 Kcmil, 5/8" - 3/4" Rod Dia.
Documentation & Downloads
Specifications
Additional
| UL Listed | Yes |
|---|---|
| Certification - CSA Approved | Yes |
| RoHS Compliance Status | CM |
| Connector Type | Tap |
| Dimension Length | 0.75 in |
| Conductor Size Run Range | 250 kcmil - 500 kcmil |
| Rebar Size Range | #5 - #6 |
| Oxide Inhibitor Type | Penetrox E |
| Plating Type | Unplated |
| Certification - UL Listed Direct Burial | Yes |
|---|---|
| Standards Met | UL467, IEEE 837 |
| Material | Copper |
| Type | Taps |
| Conductor Size Tap Range | 3/0 AWG - 250 kcmil |
| Ground Rod Diameter | 5/8 in - 3/4 in |
| Number of Crimps Required | 1 |
| Prefilled Oxide Inhibitor | Yes |
