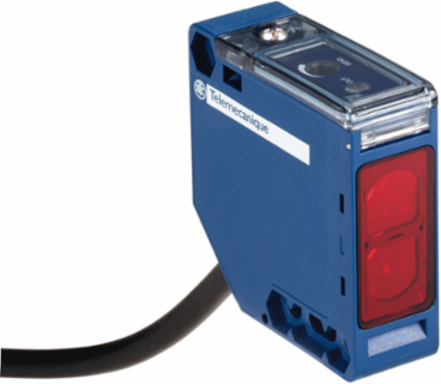

Telemecanique Sensors XUK1ANANL2 Photoelectric sensors XU, XUK, reflex, Sn 7 m, 12...24 VDC, cable 2 m
- MPN: XUK1ANANL2
- PPN: TES-XUK1ANANL2
CAD
$178.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared reflex
- Material
- plastic
- Series Name
- general purpose single mode
- Sensor Design
- compact 50 x 50
- Electronic Sensor Type
- photo-electric sensor
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Cable Length2 m
Sensor NameXUK
Wiring Technique3-wire
Detection Systemreflex
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance7-7 m reflex need reflector XUZC50
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state
- Lens Material
- PMMA
- Net Weight
- 0.07 kg
- Maximum Delay First Up
- 15 ms
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- PBT
- Output Type
- solid state
- [Us] Rated Supply Voltage
- 12...24 V DC
Height50 mm
Maximum Delay Response2 ms
Setting-Upwithout sensitivity adjustment
Maximum Voltage Drop<1.5 V closed state)
Maximum Delay Recovery2 ms
Maximum Sensing Distance10 m reflex
Wire Insulation MaterialPVC
Width18 mm
Depth50 mm
Environment
- Product Certifications
- CE || CSA || UL
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
