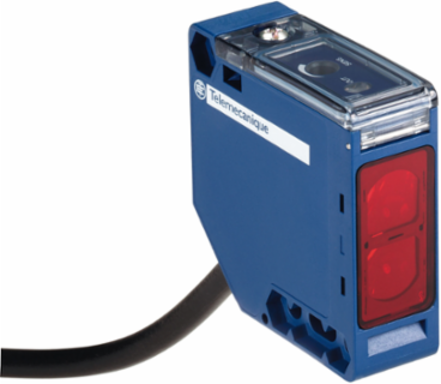

Telemecanique Sensors XUK2APANL2R Photoelectric sensors XU, XUK, receiver, Sn 30 m, 12...24 VDC, cable 2 m
- MPN: XUK2APANL2R
- PPN: TES-XUK2APANL2R
- UNSPSC: 39121528
CAD
$153.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (thru-beam system) photo-electric receiver has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric receiver has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared thru beam
- Material
- plastic
- Series Name
- general purpose single mode
- Sensor Design
- compact 50 x 50
- Electronic Sensor Type
- photo-electric sensor receiver
Discrete Output TypePNP
Type Of Output Signaldiscrete
Cable Length2 m
Sensor NameXUK
Wiring Technique3-wire
Detection Systemthru beam
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance30-30 m thru beam need a transmitter XUK2AKSNL2T
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state
- Lens Material
- PMMA
- Maximum Delay Recovery
- 2 ms
- Maximum Sensing Distance
- 45 m thru beam
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- PBT
- Output Type
- solid state
- Add On Output
- without
Height50 mm
Maximum Delay Response2 ms
Setting-Upwithout sensitivity adjustment
Maximum Voltage Drop<1.5 V closed state)
Maximum Delay First Up15 ms
Supply Voltage Limits10-36 V DC
Wire Insulation MaterialPVC
Width18 mm
Depth50 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- CSA || CE || UL
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111207EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
