Telemecanique Sensors

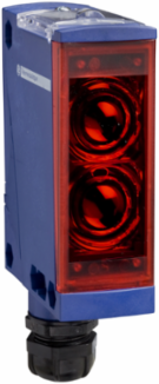

Telemecanique Sensors XUX9APANT16 Photoelectric sensors XU, XUX, polarised, Sn 11 m, 12...24 VDC, terminals

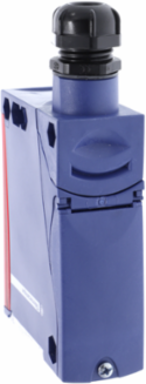

Photoelectric sensors XU, XUX, polarised, Sn 11 m, 12...24 VDC, terminals

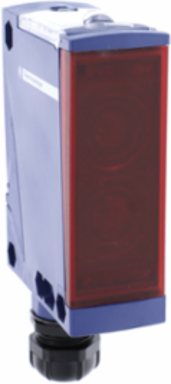

Photoelectric sensors XU, XUX, polarised, Sn 11 m, 12...24 VDC, terminals
Photoelectric sensors XU, XUX, polarised, Sn 11 m, 12...24 VDC, terminals
  • MPN: XUX9APANT16
  • PPN: TES-XUX9APANT16
  • UNSPSC: 39121528

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$253.42/ EA

Description

This compact design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Specifications

Environment

Product Certifications
CE || CSA || UL
Ambient Air Temperature For Operation
-25-55 °C
Ambient Air Temperature For Storage
-40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 double insulation IEC 60529 || IP65 double insulation IEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP111233EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity Profile
ENVEOLI111209EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Current Consumption
<= 35 mA no-load
Switching Frequency
<= 250 Hz
Status Led
1 LED yellow)output state || 1 LED green)supply
Lens Material
PMMA
Maximum Voltage Drop
<1.5 V closed state)
Maximum Delay Recovery
2 ms
Maximum Sensing Distance
15 m polarised reflex
Enclosure Material
PBT
Output Type
solid state
[Us] Rated Supply Voltage
12...24 V DC
Height92 mm
Maximum Delay Response2 ms
Setting-Upsensitivity adjustment
Cable Entry1 entry for M16 x 1.5 cable gland 7-10 mm
Net Weight0.2 kg
Maximum Delay First Up15 ms
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Width31 mm
Depth77 mm

Specifications

Electrical Connection
screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Discrete Output Function
1 NO
Range Of Product
Telemecanique Photoelectric sensors XU
Sensor Name
XUX
Wiring Technique
3-wire
Detection System
polarised reflex
Supply Circuit Type
DC
[Sn] Nominal Sensing Distance
11-11 m polarised reflex need reflector XUZC50
Discrete Output TypePNP
Type Of Output Signaldiscrete
Emissionred polarised reflex
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 92 x 71
Electronic Sensor Typephoto-electric sensor
