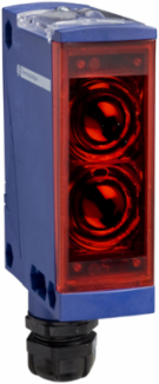

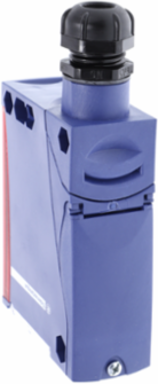

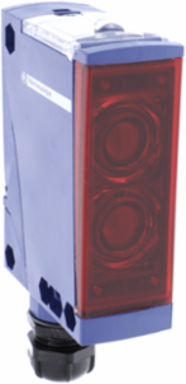

Telemecanique Sensors XUX1APANT16 Photoelectric sensors XU, XUX, reflex, Sn 14 m, 12...24 VDC, terminals
- MPN: XUX1APANT16
- PPN: TES-XUX1APANT16
CAD
$230.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUX
- Wiring Technique
- 3-wire
- Detection System
- reflex
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 14-14 m reflex need reflector XUZC50
Discrete Output TypePNP
Type Of Output Signaldiscrete
Emissioninfrared reflex
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 92 x 71
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green)supply
- Lens Material
- PMMA
- Maximum Voltage Drop
- <1.5 V closed state)
- Maximum Delay Recovery
- 2 ms
- Maximum Sensing Distance
- 20 m reflex
- Enclosure Material
- PBT
- Output Type
- solid state
- [Us] Rated Supply Voltage
- 12...24 V DC
Height92 mm
Maximum Delay Response2 ms
Setting-Upsensitivity adjustment
Cable Entry1 entry for M16 x 1.5 cable gland 7-10 mm
Net Weight0.2 kg
Maximum Delay First Up15 ms
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Width31 mm
Depth77 mm
Environment
- Product Certifications
- UL || CSA || CE
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111233EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111209EN
