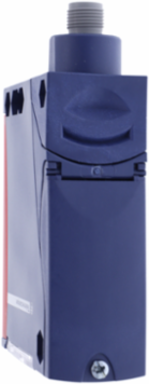

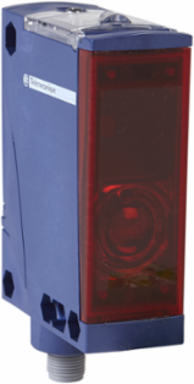

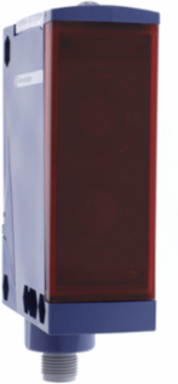

Telemecanique Sensors XUX0AKSAM12 Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12
- MPN: XUX0AKSAM12
- PPN: TES-XUX0AKSAM12
- UNSPSC: 39121528
CAD
$339.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (thru-beam system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric emitter has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M12, 4 pins
- Type Of Output Signal
- discrete
- Emission
- infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
- Material
- plastic
- Series Name
- general purpose multimode
- Sensor Design
- compact 92 x 71
- Electronic Sensor Type
- photo-electric sensor
Discrete Output Function1 NO or 1 NC programmable
Range Of ProductTelemecanique Photoelectric sensors XU
Sensor NameXUX
Wiring Technique3-wire
Detection Systemmultimode
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance11-11 m polarised reflex need reflector XUZC50 || 40-40 m thru beam need a transmitter XUX0AKSAM12T || 2-2 m diffuse || 1.3-1.3 m diffuse with background suppression
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
- Lens Material
- PMMA
- Net Weight
- 0.2 kg
- Maximum Delay First Up
- 200 ms
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Width
- 31 mm
- Depth
- 77 mm
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
Height92 mm
Maximum Delay Response2 ms
Setting-Upself-teaching
Maximum Voltage Drop<1.5 V closed state)
Maximum Delay Recovery2 ms
Maximum Sensing Distance15 m polarised reflex || 3 m diffuse || 60 m thru beam || 1.3 m diffuse with background suppression
Enclosure MaterialPBT
Output Typesolid state
Add On Outputwith alarm output, <= 100 mA overload and short-circuit protection
Environment
- Product Certifications
- UL || CSA || CE
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529 || IP67 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111233EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111209EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
