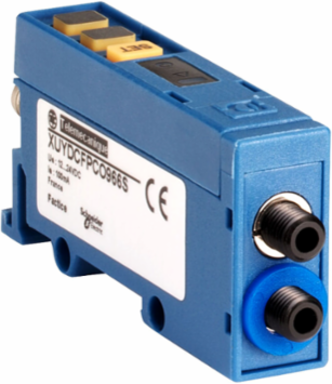

Telemecanique Sensors XUYDCFCO966S Photoelectric sensors XU, XUY, M8 connector, Sn 4 mm, discrete solid state
- MPN: XUYDCFCO966S
- PPN: TES-XUYDCFCO966S
CAD
$564.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Photoelectric sensors XU, XUY, M8 connector, Sn 4 mm, discrete solid state
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M8, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Type Of Output Signal
- discrete
- Emission
- white LED (450 - 650 nm)
- Material
- plastic
- Series Name
- Application packaging
- Sensor Design
- fiber design
- Electronic Sensor Type
- photo-electric sensor
Discrete Output TypePNP and NPN
Switching Frequency< 20 kHz
Range Of ProductTelemecanique Photoelectric sensors XU
Sensor NameXUY
Wiring Technique4-wire
Detection Systemdiffuse
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance18-18 mm with fiber optic XUYFPDC61/101 || 4-4 mm with fiber optic XUYFPDCM861/M8101
Complementary
- Current Consumption
- 50 mA
- Setting-Up
- with sensitivity adjustment
- Spot Diameter
- 0.06 in (1.5 mm)
- Maximum Delay Recovery
- 25 µs
- Net Weight
- 0.047 kg
- Depth Of Field
- 3...1 mm with fiber optic XUYFPDC61/101 || - 5...7 mm with fiber optic XUYFPDC61/101 || +/- 1 mm with fiber optic XUYFPDCM861/M8101
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
- [Us] Rated Supply Voltage
- 24 V DC reverse polarity protection
Status Ledoutput state indication 1 LED
Lens Materialpolyamide
Maximum Voltage Drop<2 V closed state)
Pulse Frequency40 kHz
Voltage State 0 Guaranteed< 1.4 V
Supply Voltage Limits10-30 V DC
Enclosure MaterialPolyamide
Maximum Delay Response25 µs
Voltage State 1 Guaranteed> 3 V
Environment
- Product Certifications
- CE || cULus
- Ambient Air Temperature For Storage
- -20-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 20000 lux incandescent bulb
Ambient Air Temperature For Operation0-40 °C
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
