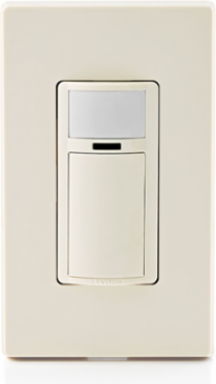

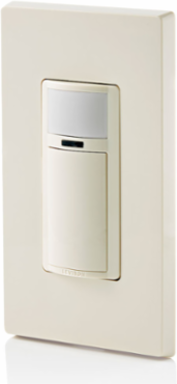

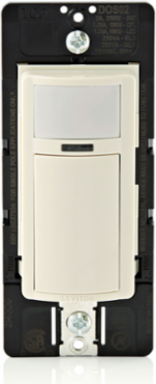

Leviton DOS02-1LT Decora Motion Sensor Light Switch, 2A, 180° Coverage, Light Almond
- MPN: DOS02-1LT
- UPC: 078477572573
- PPN: LEV-DOS02-1LT
CAD
$33.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

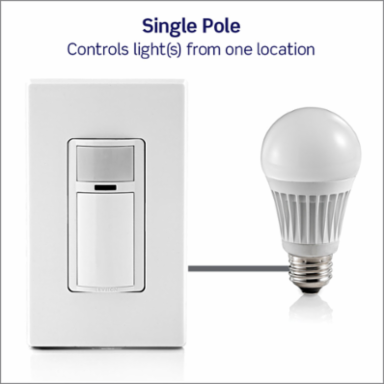

Decora Occupancy Motion Sensor Light Switch. 180° PIR Automatic-on Wallbox Sensor, single pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC – Light Almond
Features
- Ideal for pantries, closets, laundry rooms and basements
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage

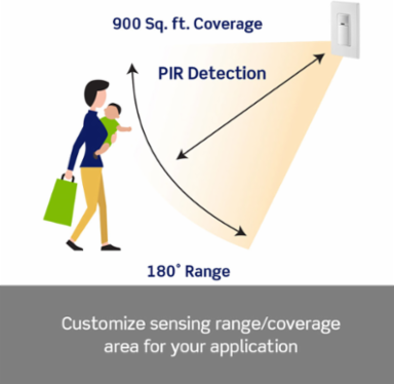

- Provides 180° Field-of-View, 900 sq. ft. of coverage

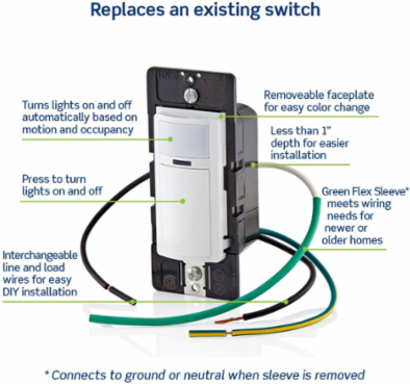

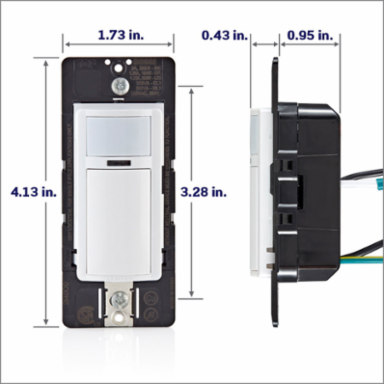

- Shallow design easily fits in the wallbox and can replace a single pole switch

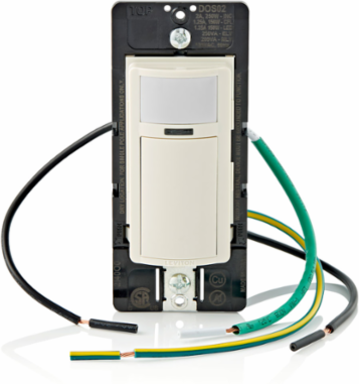

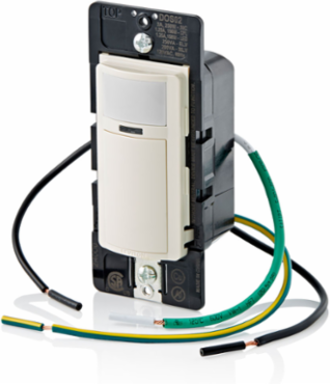

- Leaded terminals for easier installation

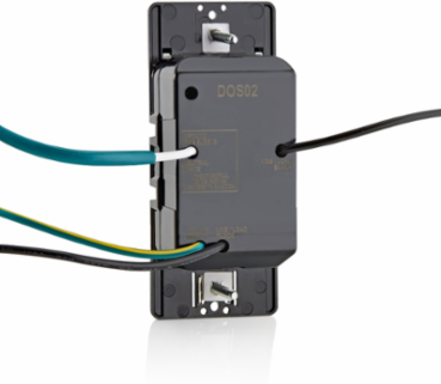

- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Interchangeable line and load wires

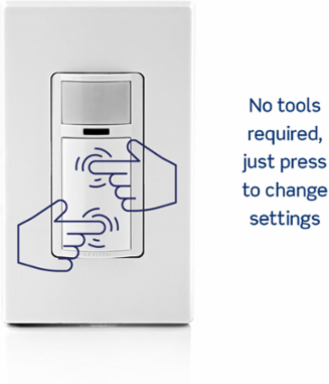

- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC

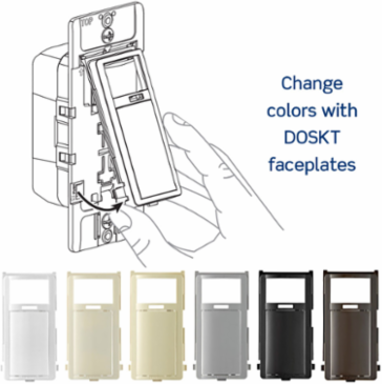

- Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
- Five-Year Limited warranty
- CONVENIENT – Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
- EASY TO INSTALL – Shallow design easily fits in the wallbox
- FLEXIBLE – Install with or w/out a neutral wire, ground required
- VERSATILE – Can be set for vacancy (manual-on) switching
- PRACTICAL – Perfect for pantry, closet, laundry room and basement
- STYLISH – Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Auto-ON/Auto-OFF
- Yes
- Color
- Light Almond
- Grade
- Residential
- Load Rating
- 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive
- Neutral
- Optional
- Sensor Technology
- Passive Infrared
- Standards and Certifications
- CSA, FCC, Title 24
- Switch
- Relay
- Voltage
- 120 VAC
- Warranty
- 5-Year Limited
California Title 24Yes
Coverage (Sq.Ft.)180°, 900 Sq. Ft
LED ColorGreen and Red
Mounting TypeWall Switch
Pole1
Sensor TypeOccupancy
Style NameDecora
Time Delay1M, 5M, 10M, 20M
WallplateNot Included
WiringGround or Neutral Required
