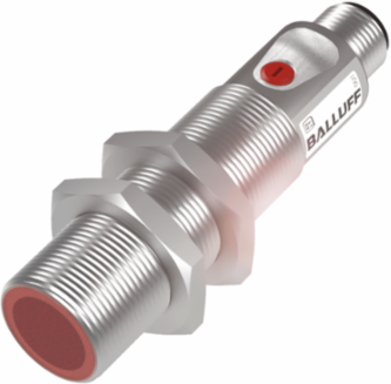

Balluff BOS 18M-PA-LE20-S4 Photoelectric Sensor, 18 x 75 mm, Red Light, 10-30 VDC
- MPN: BOS 18M-PA-LE20-S4
- PPN: BAL-BOS01NJ
CAD
$179.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric Sensor, 18 x 75 mm, Red Light, 10-30 VDC
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Switching Output
- PNP Normally open (NO), PNP Normally closed (NC)
- Switching Function
- Light-on, dark-on
- Operating Current
- 100 mA
- Voltage Drop Max
- 1.5 V at Ie
- Load Capacitance Max
- 0.1 bcF
- Short-circuit Protection
- Yes
- Dimension
- 18 x 75 mm
- Material Sensing Surface
- Glass
- Mounting
- Nut M18x1
- Ingress Rating
- IP67
- Contamination Scale
- 3
- Series
- 18M
Range0-60 m
Principle of OperationThrough-beam sensor (receiver)
Switching Frequency1000 Hz
No-load Current12 mA
Ripple Max15 % of Ue
Polarity Reversal ProtectionYes
Protection ClassII
Housing MaterialBrass, Nickel plated
ConnectionM12x1 Male, 4-pin, gold plated
Tightening Torque15 Nm, 30 Nm
Ambient Temperature-5 to 55 0C
Approval/ConformitycULus, CE, EAC, WEEE
