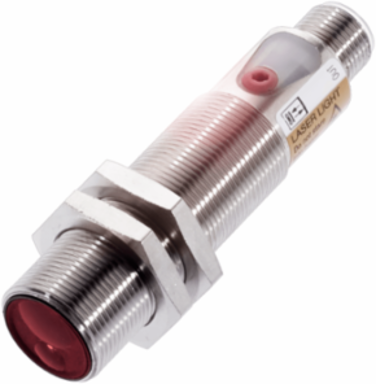

Balluff BOS 18M-PS-LH22-S4 Diffuse and through-beam sensors BOS 18M-PS-LH22-S4
- MPN: BOS 18M-PS-LH22-S4
- PPN: BAL-BOS002H
CAD
$394.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Diffuse and through-beam sensors BOS 18M-PS-LH22-S4
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Series
- 18M
- Material Sensing Surface
- PMMA
- Dimension
- d8 18 x 75 mm
- Light Type
- Laser red light
- Light Spot Size
- 0.05 x 0.1 mm at focal point
- Principle of Optical Operation
- Diffuse sensor, Triangulation
- Approval/Conformity
- CE, cULus, EAC, WEEE
Range30-150 mm
InterfacePNP Normally open (NO)
Housing MaterialBrass
ConnectionConnector M12x1-Male, 4-pin
Beam CharacteristicFocus, typical at 100 mm
Principle of OperationPhotoelectric sensor
Special Optical FeatureBackground suppression
