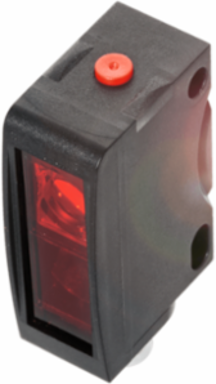

Balluff BOS 6K-PU-PR10-S75 Diffuse and through-beam sensors BOS 6K-PU-PR10-S75
- MPN: BOS 6K-PU-PR10-S75
- PPN: BAL-BOS01MJ
CAD
$342.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Diffuse and through-beam sensors BOS 6K-PU-PR10-S75
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- No-load Current
- 30 mA
- Switching Frequency
- 1000 Hz
- Turn-off Delay
- 0.5 ms
- Range
- 0-6 m
- Dimension
- 12 x 41.5 x 21.6 mm
- Mounting
- Screw M3
- Material Sensing Surface
- PMMA
- Light Type
- LED Red light
- Polarity Reversal Protection
- Yes
- Approval/Conformity
- cULus, CE, EAC, WEEE
- Principle of Operation
- Photoelectric retroreflective sensor
- Ambient Light Max
- 5000 Lux
- Wave Length
- 660 nm
- Input Function
- Key disable on/off, same function as button
- Beam Characteristic Additional
- Divergent
Rated Operating Current100 mA
Ripple12% of Ue
Voltage Drop2.4 V
Turn-on Delay0.5 ms
Light Spot Size600 x 600 mm at 7 m
ConnectionConnector M8x1 Male, 4-pin
Housing MaterialABS
Beam CharacteristicDivergent
InterfacePNP NO/NC
Short-circuit ProtectionYes
Series6K
Ambient Temperature-20 to 60 C
Blind Zone100 mm
Switching OutputPNP normally open/normally closed (NO/NC)
Principle of Optical OperationRetroreflective sensor
