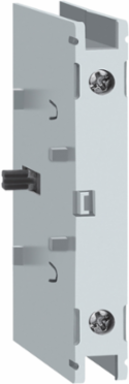

TeSys VLS Disconnect Switch Auxiliary Contact, 1 NC, 48.9 mm Depth, 12 mm Width
Schneider Electric

Schneider Electric VLSA10R2E TeSys VLS Disconnect Switch Auxiliary Contact, 1 NC, 48.9 mm Depth, 12 mm Width

  • MPN: VLSA10R2E
  • PPN: SCH-VLSA10R2E
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $49.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Auxiliary contact module is 3.07 inches tall, 0.47 inches wide and 1.93 inches deep. It weighs 0.08 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Italy
    Depth48.9 mm

    Physical Attributes

    Color
    Gray

    Complementary Attributes

    Minimum Output Current
    10 mA
    Minimum Output Voltage5 V

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Mechanical Robustness
    vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    Network Type
    AC, DC
    [Ie] Rated Operational Current
    6 A AC-15)24 V AC, 6 A AC-15)48 V AC, 6 A AC-15)127 V AC3 A AC-15)240 V AC3 A DC-13)24 V DC, 1.5 A DC-13)48 V DC, 0.55 A DC-13)127 V DC, 0.27 A DC-13)240 V DC
    Local Publishable Date
    2026-07-15
    Stocking Flag
    Y
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Product Category
    5
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contact Operation
    early-break 1 NC
    Device Short Name
    VLSA
    Fire Resistance
    850 °C IEC 60695-2-11
    Network Frequency
    50/60 Hz
    Product Availability
    Stock - Normally stocked in distribution facility
    Range
    TeSys
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    12 mm
    [Ithe] Conventional Enclosed Thermal Current
    10 A
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538908140
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Mounting Locationright, left
    Certificate AgencycULus, GL
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    TraceabilityNo
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1943
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeVLS
    Contacts Type And Composition1 NC
    Energy Efficiency OptimizedFalse
    Mounting SupportDIN rail
    Performance Levelhigh performance
    Product Or Component Typeauxiliary contact block
    ReturnabilityYes
    Tightening Torquecontrol circuit 0.8-1 N.m screw clamp terminals
    Height Nominal78 mm
    [Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
    [Ue] Rated Operational Voltage690 V AC 50/60 Hz
    Connections - Terminalscontrol circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
    Package Weight(Lbs)43.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    auxiliary contact block

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Output Attributes

    Minimum Output Current
    10 mA
    Minimum Output Voltage5 V
