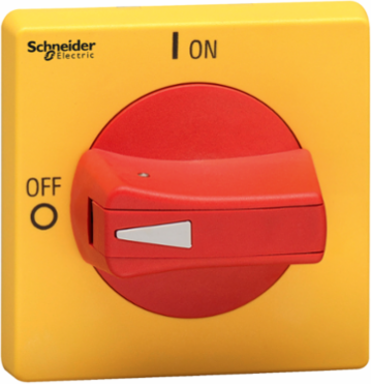

Schneider Electric VLSH2H5RD TeSys VLS Disconnect Switch with Rotary Handle, 65x65mm, IP65 Rated
- MPN: VLSH2H5RD
- PPN: SCH-VLSH2H5RD
CAD
$57.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This red rotary handle will work with any VLS3P DIN rail mount disconnect switch. Handle is defeatable per 60947-4-1. This handle mounts into a 0.89 in (22.5 mm) hole. 5 mm shafts are used with this handle. The front plate is yellow in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 2.85 inches deep. The handle weighs 0.14 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
Features
- Purpose-built for efficient field integration, this 65 times 65 mm front-plate device drops directly into a standard 22.5 mm single pushbutton knockout. By eliminating the multi-hole drilling and alignment measurements associated with traditional disconnect handles, it slashes installation times for industrial panel builders and reduces the risk of alignment errors.
- Featuring a heavy-duty, water-resistant seal configuration, this operating handle holds comprehensive NEMA 1, 3R, 4, 4X, and 12 ratings alongside an IP65 ingress protection degree. This ensures the integrity of your inner electrical enclosures during high-pressure water washdowns, corrosive chemical splashing, or in dusty cement and mining applications
- Designed to accommodate 1 to 3 safety padlocks with shackle diameters from 4 to 8 mm, the rugged protruding grip locks securely in the "0 / OFF" position. This mechanical isolation prevents the accidental re-energization of heavy machinery, protecting maintenance technicians in compliance with OSHA and CSA industrial safety regulations.
- Tailored as a precise mechanical interface for the entire TeSys VLS3P switch range (spanning 16 to 125 Amps), this handle keys directly onto standard 5 mm square operating shafts. This universal hardware footprint streamlines inventory tracking for facility managers and ensures seamless torque transfer when manually cycling heavy motor loads.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy, United States
Depth72.5 mm
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- VLS
- Energy Efficiency Optimized
- False
- Marking
- 0 - 1
- Product Or Component Type
- rotary handle
- Returnability
- Yes
- Sustainable Packaging
- No
- Handle Color
- red
- Height Nominal
- 65 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-04-04
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1943
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension65 x 65 mm
Device Short NameVLSH
Fixing Modehole 22.5 mm
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Tightening Torque2.3 N.m
Handle Front Plate Coloryellow
Width Nominal65 mm
Package Weight(Lbs)62.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Nema Degree Of ProtectionNEMA 1, NEMA 2 UL 508, NEMA 3R UL 508, NEMA 4 UL 508, NEMA 4X UL 508, NEMA 12 UL 508, NEMA 12K UL 508
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- rotary handle
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
