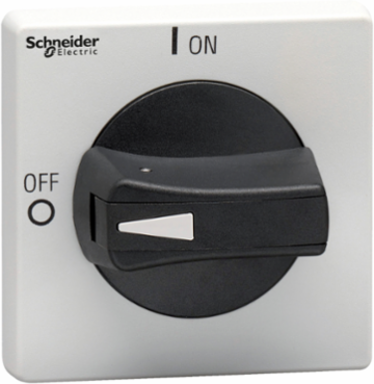

Schneider Electric VLSH2S5B TeSys VLS Rotary Handle Disconnect Switch, 65x65 mm, IP65, Black Handle
- MPN: VLSH2S5B
- PPN: SCH-VLSH2S5B
CAD
$57.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 2.28 inches deep. The handle weighs 0.15 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Front Plate Colour
- grey
- Product Or Component Type
- rotary handle
- Range
- TeSys
Range CompatibilityTeSys TeSys VARIO LS VLS3P
Handle Colourblack
Marking0 - 1 || OFF-ON
Device Short NameVLSH
Complementary
- Height
- 65 mm
- Base Dimension
- 65 x 65 mm
- Tightening Torque
- 2.3 N.m
- Depth
- 58 mm
Fixing Modeby 4 screws
Net Weight0.068 kg
Width65 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Environment
- Nema Degree Of Protection
- NEMA 1 || NEMA 2 UL 508 || NEMA 3R UL 508 || NEMA 4 UL 508 || NEMA 4X UL 508 || NEMA 12 UL 508 || NEMA 12K UL 508
Ip Degree Of ProtectionIP65
