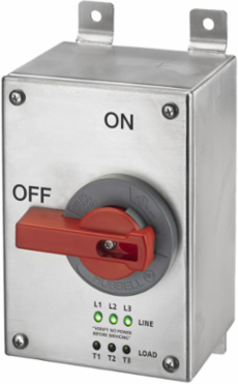

Hubbell Wiring Device-Kellems HBLDS3SSP Unfused Disconnect Switch 30A NEMA 4X with LED Indicators, 9.7 Inch Width
- MPN: HBLDS3SSP
- UPC: 783585365152
- PPN: HBL-HBLDS3SSP
- UNSPSC: 39121521
CAD
$1541.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switch Unfused, 30A 600VAC, 3-Pole, NEMA 4X, with LED Lights
Features
- Six highly visible integral phase identification LEDs for use on 3 Phase Y system
- LEDs provide secondary means of visual confirmation of make/break on all phases
- Cover cannot be removed with switch in the “ON” position
- Verification of opening of load side contacts
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
Specifications
Additional
- Amperage
- 30 A
- Poles
- 3-Pole
- Dielectric Voltage Withstand
- 3000 V AC minimum
- Current Interrupting
- Certified for full rated current and voltage
- Mounting
- Fixed feet
- Enclosure Rating
- NEMA 4X, Type 4X, Type 12
- Enclosure Screws Material
- Stainless Steel
- Terminal Identification
- UL, CSA and international conventions
- UV Resistance
- UV stabilized materials
- Country of Origin
- PL
Voltage600 V AC
Short Circuit Current Rating (SCCR)65 kA RMS symmetrical max
Operating Temperature-40°C to 75°C
Width9.7 in
Material#14 Gauge Type 304 Stainless Steel base and top, PBT handle and shaft
Enclosure Gasket MaterialNeoprene
Shaft Seal MaterialMolded Neoprene
FlammabilityUL94-5VA and V0
CompliancecULus Listed, NSF Certified, IP69K
