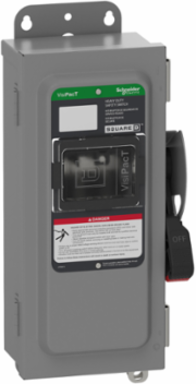

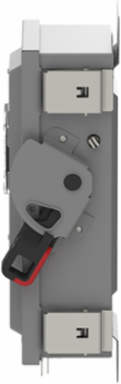

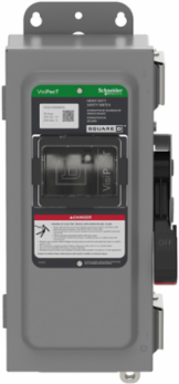

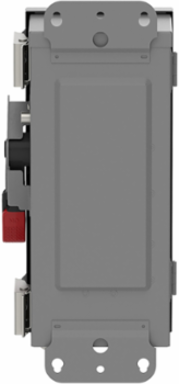

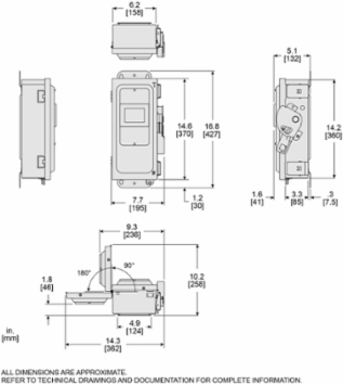

Square D VHU361AWKGL Heavy Duty Safety Switch 30A, 600V, 3-Pole, NEMA 12, 6.48 Inch Width
- MPN: VHU361AWKGL
- PPN: SCH-VHU361AWKGL
CAD
$591.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for rigorous industrial applications, this heavy-duty safety switch from Schneider Electric is an essential component in power distribution. With a robust design that supports 30 amps and operates at 600 volts, it ensures reliable disconnection in demanding environments. Its NEMA 12 rating enhances its suitability for indoor use, protecting it from dust and moisture, while its compact 6.48-inch width makes it an efficient choice for space-constrained installations. This switch stands out as a dependable solution for safely managing electrical circuits, providing peace of mind and operational safety in any electrical system.
Features

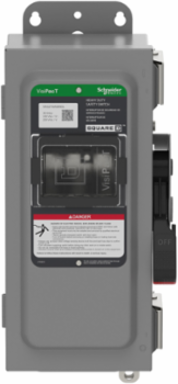

- Equipped with a factory-installed, transparent viewing window, this heavy-duty non-fusible disconnect allows personnel to visually confirm the internal blade position instantly. This critical feature eliminates the need to expose workers to live electrical components, significantly reducing dangerous arc flash hazards and streamlining OSHA-compliant lockout/tagout (LOTO) safety procedures.
- Constructed from rugged, industrial-grade galvannealed steel and rated for NEMA 12 applications, this surface-mount safety switch is engineered to block falling dirt, circulating dust, and non-corrosive liquid drips. Keeping these abrasive and conductive contaminants away from the internal 3-pole contacts drastically reduces mechanical wear and ensures highly reliable local disconnect power for your facility's heavy machinery.
- Designed to isolate up to 600V AC/DC at a continuous 30 amps, this 3-pole, un-fused disconnect perfectly manages commercial HVAC units, industrial pumps, and up to 30 HP 3-phase motors. It utilizes a highly durable quick-make, quick-break operating mechanism that minimizes internal arcing during switching, extending the mechanical lifespan of the unit to three times the standard NEMA requirement.
- Arriving with factory-installed equipment ground lugs and an integrated dual cover interlock, this Schneider Electric/Square D component ensures safe, efficient wire routing right out of the box. Fully UL Listed to rigorous UL98 and NEMA KS1 standards, the built-in interlock actively prevents the door from being opened while the switch is energized, protecting your maintenance crew while satisfying strict NEC inspector requirements.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 5.242 in |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 5 hp at 240 V AC 50/60 Hz for 1 phase motors10 hp at 240 V AC 50/60 Hz for 3 phase motors7.5 hp at 480 V AC 50/60 Hz for 1 phase motors, 20 hp at 480 V AC 50/60 Hz for 3 phase motors, 10 hp at 600 V AC 50/60 Hz for 1 phase motors, 30 hp at 600 V AC 50/60 Hz for 3 phase motors5 hp at 250 V DC, 15 hp at 600 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 1.4412600645878026, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.16988377212236652, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 kg CO2 eq., 3.248016280353195 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 14.57 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 12 kg CO2 eq., 11.517275059656443 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 29 kg CO2 eq., 29.344468449033375 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 46 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 6.48 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 4.607 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 45.72090362575318 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
