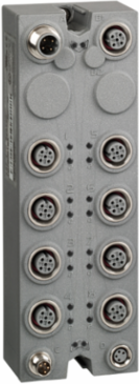

Schneider Electric TM7BDM16A Discrete I/O Expansion Block, 16 DI/DO, IP67, 24 V DC, M12 Connector
- MPN: TM7BDM16A
- PPN: SCH-TM7BDM16A
CAD
$601.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TM7BDM16A Discrete I/O Expansion Block from Schneider Electric is engineered to enhance your automation systems with its robust performance and versatility. Featuring 16 discrete inputs and outputs, this expansion block is designed to operate seamlessly within demanding environments thanks to its IP67 rating, ensuring reliable performance even in harsh conditions. With a 24 V DC power supply and M12 connector, it simplifies integration into existing systems, making it an essential component for streamlining operations in PLC, HMI, and data acquisition applications.
Documentation & Downloads
Specifications
Additional
- Input/Output Number
- 16 I/O
- Discrete Output Number
- 0-16 ≤ 0.5 A transistor configurable by software
- Discrete Output Voltage
- 24 V DC
- Discrete Input Logic
- Positive
- Voltage
- 24 V DC
- Operating Temperature
- -10 to 60 °C (-14 to 140 °F)
- Relative Humidity
- 5 to 95% non-condensing
- Storage Altitude
- 0 to 3000 m (0 to 9842.52 ft)
- Vibration Resistance
- 7.5 mm amplitude 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
- Range Compatibility
- Modicon M258, Modicon LMC058
- Fixing Mode
- By 2 screws
- Net Weight
- 0.32 kg (0.71 lb)
- Pollution Degree
- 2 IEC 60664
- Product Certifications
- ATEX II 3g EEx nA II T5, GOST-R, cURus, C-Tick
- Discrete Input Voltage Type
- DC
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- EU compliant waste disposal
- Reach Regulation
- Free of SVHC above threshold
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Operating Position
- Any position
- Circularity Profile
- ENVEOLI1409005EN
Discrete Input Number0-16 configurable by software
Discrete Input Voltage24 V DC
Discrete Input Current4.4 mA
Sensor Power Supply24 V, 500 mA with overload, short-circuit and reverse polarity protection
Current0.5 A
Storage Temperature-25 to 85 °C (-13 to 185 °F)
Operating Altitude0 to 2000 m (0 to 6561.68 ft)
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Range Of ProductModicon TM7
Bus TypeTM7 bus
Electrical Connection1 male M12 B-coding 4-pin bus IN, 1 female M12 B-coding 4-pin bus OUT, 1 male M8 4-pin power IN, 1 female M8 4-pin power OUT, 8 female M12 5-pin sensor/actuator connectors
Enclosure MaterialPlastic
StandardsIEC 61131-2
MarkingCE
Discrete Output Voltage TypeDC
Reach Free Of SvhcYes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Rohs Exemption InformationYes
Local SignallingBus diagnostic 2 LEDs, sensor power supply diagnostics 2 LEDs
Environmental DisclosureENVPEP1409005EN
