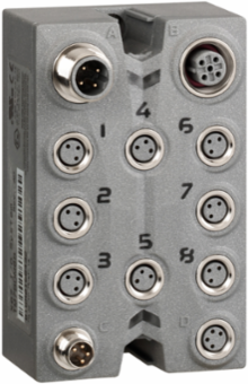

Schneider Electric TM7BDO8TAB Modicon TM7 Discrete I/O Expansion Block, 8 DO, IP67, 24 V DC
- MPN: TM7BDO8TAB
- PPN: SCH-TM7BDO8TAB
CAD
$385.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Modicon TM7 Discrete I/O Expansion Block from Schneider Electric is engineered to enhance automation systems with its robust design, featuring eight discrete outputs. Rated at IP67, this module is built to withstand harsh environmental conditions, ensuring reliable performance in demanding applications. Operating at 24 V DC, it integrates seamlessly into existing PLC and HMI setups, expanding your control capabilities with ease. This component is an ideal choice for those looking to enhance their automation infrastructure with durable and efficient technology.
Documentation & Downloads
Specifications
Additional
- Discrete Output Number and Current
- 8 outputs, <= 2 A transistor
- Rated Operational Voltage
- 24 V DC
- Sensor Power Supply
- 24 V, 500 mA, overload, short-circuit and reverse polarity protected
- Storage Altitude
- 0-3000 m (0-9842.52 ft)
- Vibration Resistance
- 7.5 mm amplitude 2-8 Hz, 2 g 8-200 Hz, 4 g 200-500 Hz IEC 60721-3-5 Class 5M3
- Pollution Degree
- 2 IEC 60664
- Electrical Connection
- 1 male M12 B-coding 4-way bus IN, 1 female M12 B-coding 4-way bus OUT, 1 male M8 4-way power IN, 1 female M8 4-way power OUT, 1 female M8 3-way actuator
- Net Weight
- 0.185 kg (0.41 lb)
- Enclosure Material
- Plastic
- Local Signalling
- 2 LEDs bus diagnostic, 2 LEDs sensor power supply diagnostics
- Product Certifications
- GOST-R, C-Tick, ATEX II 3g EEx nA II T5, cURus
- Ambient Air Temperature for Operation
- -10 to 60 °C (14 to 140 °F)
- Relative Humidity
- 5-95% without condensation or dripping water
- Product Type
- Discrete I/O expansion block
- Warranty
- 18 months
Discrete Output Voltage24 V DC
Input/Output Number8
Operating Altitude0-2000 m (0-6561.68 ft)
Operating PositionAny position
Shock Resistance30 g 11 ms IEC 60721-3-5 Class 5M3
IP Degree of ProtectionIP67 IEC 61131-2
Dimensions85 mm x 53 mm x 42 mm
Fixing Mode2 screws
Bus TypeTM7 bus
StandardsIEC 61131-2
MarkingCE
Ambient Air Temperature for Storage-25 to 85 °C (-13 to 185 °F)
Electromagnetic CompatibilityIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, CISPR 11 compliant
Range CompatibilityModicon LMC058, Modicon M258
