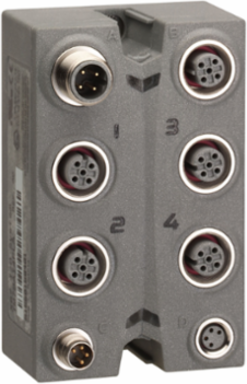

Schneider Electric TM7BAO4VLA Analog I/O Expansion Block, IP67, 4 AO, +/-10 V, M12 Connector

MPN: TM7BAO4VLA
PPN: SCH-TM7BAO4VLA
UNSPSC: 32151705

$739.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric TM7BAO4VLA Analog I/O Expansion Block is a robust solution designed to enhance automation and control systems. With an IP67 rating, it provides superior protection against dust and water, making it suitable for demanding industrial environments. This versatile unit features four analog outputs with a voltage range of +/-10 V, and its M12 connector ensures easy integration into existing setups. By expanding your system's capability, this expansion block helps maintain precision and efficiency in data acquisition and control applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Austria
Depth	42 mm

Weight	219 g

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Connection	1 male connector M12 - B coding - 4 ways bus IN1 female connector M12 - B coding - 4 ways bus OUT1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT4 female connectors M12 - A coding - 5 ways actuator
Certificate Agency	GOST-R, ATEX II 3g EEx nA II T5, cURus, C-tick
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3 kg CO2 eq., 0.2787266759139124
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 11.993494408345327
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1409005EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Bearing Track Assembly Possible	false
Electromagnetic Compatibility	EN/IEC 61000-4-6
Fixing Mode	by 2 screws
Load Impedance Ohmic	1 kOhm
Network Type	DC
Power Consumption In W	1.1 W
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM7
Sampling Duration	400 µs for all input
Shock Resistance	30 gn 11 msIEC 60721-3-5 Class 5M3
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Vibration Resistance	7.5 mm constant amplitude 2-8 Hz) IEC 60721-3-5 Class 5M32 gn constant acceleration 8-200 Hz) IEC 60721-3-5 Class 5M34 gn constant acceleration 200-500 Hz) IEC 60721-3-5 Class 5M3
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	false
Database Version	2024-01
Height Nominal	85 mm
Silcl Acc. To En 62061	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Radio Standard Wi Fi 802.11	false
Supporting Protocol For Data Highway	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	10

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling	2 LEDs bus diagnostic, 2 LEDs sensor/actuator power supply status
Carbon Footprint Of The Distribution Phase A4	0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	107 kg CO2 eq., 107.27719242256819
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Bus Type	TM7 bus
Enclosure Material	Plastic
Front Installation Possible	false
Marking	CE
Operating Position	any position
Power Dissipation In W	3.8 W
Product Or Component Type	analog I/O expansion block
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	No
Sensor Power Supply	24-24 V
Software Version	v6.2.5-6
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	120 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
System Accessory	false
Data Source	extrapolated product
Width Nominal	53 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8536904000
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
Functional Unit Description	To communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 27,41W in harsh environment.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	416.1

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	119.54941350682743
Ambient Air Temperature For Storage	-25-85 °C-25-85 °C
Environmental Disclosure	ENVPEP1409005_V2
Ip Degree Of Protection	IP67
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation or dripping water
Pep Verification Date	2025-12-24
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-10-60 °C-10-60 °C
Circularity Profile	ENVEOLI1409005EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP1409005_V2
Pcr Version	PCR-4-ed4-FR-2021 09 06
Type Of Verification For The Pep	Independent internal review
