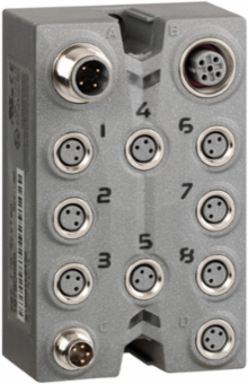

Schneider Electric TM7BDI8B Discrete I/O Expansion Block, IP67, 8 Inputs, 24V DC, M8 Connector
- MPN: TM7BDI8B
- PPN: SCH-TM7BDI8B
CAD
$275.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric TM7BDI8B Discrete I/O Expansion Block is a robust and versatile component designed to enhance automation and control systems. Featuring an IP67 rating, this expansion block is well-suited for use in demanding environments, providing reliable performance even in the presence of dust and water. With eight discrete inputs operating at 24V DC and equipped with M8 connectors, it ensures seamless integration into existing PLC and HMI setups, making it an essential element for data acquisition and control applications. This expansion block exemplifies Schneider Electric's commitment to delivering dependable and efficient solutions for modern industrial automation challenges.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V DC
- Discrete Input Logic
- Positive
- Sensor Power Supply
- 24 V, 500 mA, overload, short-circuit and reverse polarity protected
- Vibration Resistance
- 7.5 mm 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
- Operating Temperature Range
- -10 to 60 B0C (-14 to 140 B0F)
- Operating Altitude
- 0 to 2000 m (0 to 6562 ft)
- Relative Humidity
- 5 to 95 % without condensation or dripping water
- Electrical Connection
- 1 male M12-B 4 ways bus IN, 1 female M12-B 4 ways bus OUT, 1 male M8 4 ways power IN, 1 female M8 4 ways power OUT, 8 female M8 3 ways sensor
- Bus Type
- TM7 bus
- Fixing Mode
- By 2 screws
- Discrete Input Voltage Type
- DC
- Product Certifications
- CE, C-Tick, ATEX II 3g EEx nA II T5, cURus, GOST-R
- Toxic Heavy Metal Free
- Yes
- Pvc Free
- Yes
- Reach Compliance
- Free of Substances of Very High Concern above threshold
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1409005EN
- Warranty
- 18 months
Discrete Input Current7 mA
Discrete Input Number8
Input/Output Number8
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Storage Temperature Range-25 to 85 B0C (-13 to 185 B0F)
Storage Altitude0 to 3000 m (0 to 9843 ft)
Pollution Degree2 IEC 60664
Enclosure MaterialPlastic
Range CompatibilityModicon LMC058, Modicon M258
Product TypeDiscrete I/O expansion block
Local SignallingBus diagnostic 2 LEDs, Sensor power supply diagnostics 2 LEDs
StandardsIEC 61131-2
Mercury FreeYes
RoHS CompliancePro-active compliance (out of EU RoHS legal scope)
Weee ComplianceEU waste collection compliant
Circularity ProfileENVEOLI1409005EN
Operating PositionAny position
