Schneider Electric TM7BDM16B Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector
Schneider Electric TM7BDM16B Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector
- MPN: TM7BDM16B
- PPN: SCH-TM7BDM16B
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$614.17/ EA
Description

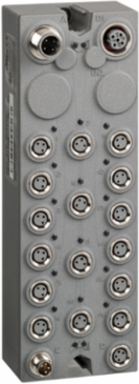

Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector
Specifications
Environment
- Product Certifications
- C-Tick || ATEX II 3g EEx nA II T5 || cURus || GOST-R
- Standards
- IEC 61131-2
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 || electrical fast transient/burst immunity test, 2 kV power supply IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV input/output IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) IEC 61000-4-5 || conducted RF disturbances IEC 61000-4-6 || conducted and radiated emissions CISPR 11
- Marking
- CE
- Ip Degree Of Protection
- IP67 IEC 61131-2
- Ambient Air Temperature For Storage
- -25-85 °C
- Operating Altitude
- 0...2000 m
Ambient Air Temperature For Operation-10-60 °C
Storage Altitude0-3000 m
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Vibration Resistance7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Pollution Degree2 IEC 60664
Relative Humidity5-95 % without condensation or dripping water
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1409005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Output Number
- 0-16 <= 0.5 A transistor configurable by software)
- Discrete Input Current
- 4.4 mA
- Net Weight
- 0.32 kg
- Discrete Input Logic
- positive
- Local Signalling
- bus diagnostic 2 LEDs || sensor power supply diagnostics 2 LEDs
Fixing Modeby 2 screws
Discrete Output Voltage TypeDC
Discrete Input Number0-16 configurable by software
Electrical Connection1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 16 female connectors M8 - 3 ways sensor or actuator
Discrete Output Voltage24 V
Sensor Power Supply24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Operating Positionany position
Specifications
- Range Of Product
- Modicon TM7
- Product Or Component Type
- discrete I/O expansion block
- Input/Output Number Of Splitter Box
- 16 I/O
- Enclosure Material
- plastic
[Ue] Rated Operational Voltage24 V DC
Input/Output Number16
Bus TypeTM7 bus
Range CompatibilityModicon M258 || Modicon LMC058
