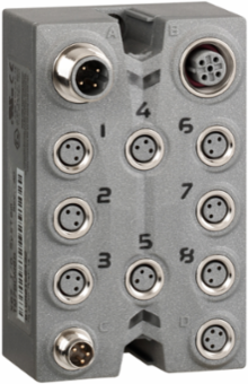

Schneider Electric TM7BDM8B Discrete I/O Expansion Block, 8 DI/DO, 24 V DC, IP67, M8 Connector
- MPN: TM7BDM8B
- PPN: SCH-TM7BDM8B
CAD
$336.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric TM7BDM8B Discrete I/O Expansion Block is a versatile solution designed to enhance automation and control systems. With the capability to accommodate eight discrete input/output channels at 24 V DC, this expansion block offers efficient data handling for various applications in industrial settings. Its IP67 rating ensures robust protection against dust and water, making it suitable for use in demanding environments. Featuring an M8 connector, this component allows for straightforward and reliable connectivity, streamlining integration into existing setups for improved functionality and performance in PLC, HMI, and data acquisition tasks.
Documentation & Downloads
Specifications
Additional
- Discrete Input Number
- 0-8 configurable by software
- Discrete Input Voltage
- 24 V DC
- Discrete Input Current
- 4.4 mA
- Bus Type
- TM7 bus
- Storage Altitude
- 0-3000 m
- Storage Temperature
- -25 to 85 °C (-13 to 185 °F)
- Pollution Degree
- 2 IEC 60664
- Shock Resistance
- 30 gn 11 ms IEC 60721-3-5 Class 5M3
- Connector Type
- M8
- Discrete Input Voltage Type
- DC
- Discrete Input Logic
- positive
- Product Type
- discrete I/O expansion block
- Standards
- IEC 61131-2
- RoHS Compliant
- Yes (including China and EU directives)
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Sustainable Offer Status
- Green Premium product
- Operating Position
- any position
Discrete Output Number0-8 transistor configurable by software, <= 0.5 A
Discrete Output Voltage24 V DC
Sensor Power Supply24 V, 500 mA per channel, overload, short-circuit and reverse polarity protection
Operating Altitude0-2000 m
Operating Temperature-10 to 60 °C (-14 to 140 °F)
Relative Humidity5-95 % without condensation or dripping water
Vibration Resistance7.5 mm amplitude 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
Electrical Connection1 male M12 B coding 4-way bus IN, 1 female M12 B coding 4-way bus OUT, 1 male M8 4-way power IN, 1 female M8 4-way power OUT, 8 female M8 3-way sensor/actuator connectors
Enclosure Materialplastic
Discrete Output Voltage TypeDC
Fixing Modeby 2 screws
Brand RangeModicon TM7 (compatible with Modicon M258, Modicon LMC058)
Product CertificationscURus, ATEX II 3g EEx nA II T5, GOST-R, C-Tick, CE
REACH CompliantYes (free of SVHC above threshold)
PVC FreeYes
Circularity ProfileENVEOLI1409005EN
WEEE ComplianceMust be disposed per EU waste regulations
Local Signallingbus diagnostic LEDs (2), sensor power supply diagnostics LEDs (2)
