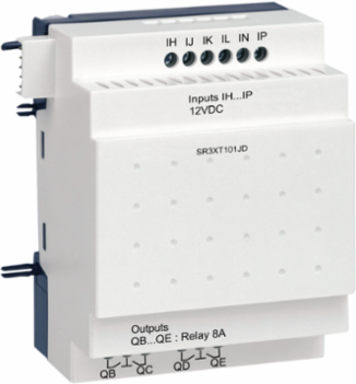

Telemecanique Sensors SR3XT101JD Discrete I/O Extension Module, 10 I/Os, 12V DC, IP20/IP40
- MPN: SR3XT101JD
- PPN: SCH-SR3XT101JD
CAD
$119.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of Zelio Logic SR2/SR3, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This discrete I/O extension module features 10 I/Os and 120 with ladder programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 6 resistive discrete inputs with voltage of 12V DC and 4 relay outputs with voltage ranges from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.2kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Zelio Logic |
|---|
| Product Or Component Type | discrete I/O extension module |
|---|
Complementary
| Contacts Type And Composition | NO relay output |
|---|---|
| Discrete Input Type | resistive |
| Output Thermal Current | 8 A for all 4 outputs relay output |
| Number Or Control Scheme Lines | 120-120 ladder |
| Clock Drift | 12 min/year 0-55 °C |
| Current State 1 Guaranteed | >= 2 mA I1...IA and IH...IR discrete input circuit) || >= 0.5 mA IB...IG used as discrete input circuit) |
| Net Weight | 0.2 kg |
| Voltage State 0 Guaranteed | <= 3 V IB...IG used as discrete input circuit || <= 2.4 V I1...IA and IH...IR discrete input circuit |
| Electrical Durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Voltage State 1 Guaranteed | >= 7 V IB...IG used as discrete input circuit || >= 5.6 V I1...IA and IH...IR discrete input circuit |
| Current State 0 Guaranteed | <= 0.2 mA IB...IG used as discrete input circuit) || <= 0.9 mA I1...IA and IH...IR discrete input circuit) |
| Overvoltage Category | III IEC 60664-1 |
| Tightening Torque | 0.5 N.m |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output || 10 Hz no load)relay output |
| Discrete Input Number | 6 IEC 61131-2 Type 1 |
| Reverse Polarity Protection | with |
| Checks | program memory on each power up |
| Input Impedance | 14 kOhm IB...IG used as discrete input circuit || 2.7 kOhm I1...IA and IH...IR discrete input circuit |
|---|---|
| Number Of Outputs | 4 relay |
| Discrete Input Voltage | 12 V DC |
| Backup Time | 10 years 25 °C |
| Discrete Input Current | 4 mA |
| Response Time | 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Output Voltage Limits | 24...250 V AC relay output) || 5...30 V DC relay output) |
| Connections - Terminals | screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid |
| Input Compatibility | 3-wire proximity sensors PNP discrete input |
| Supply Voltage Limits | 10.4-14.4 V |
| Mechanical Durability | 10000000 cycles relay output |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Counting Frequency | 1 kHz discrete input |
| Cycle Time | 6-90 ms |
| [Us] Rated Supply Voltage | 12 V DC |
Environment
| Product Certifications | GL || UL || CSA || C-Tick || GOST |
|---|---|
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Environmental Characteristic | EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2 |
| Pollution Degree | 2 IEC 61131-2 |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Operating Altitude | 2000 m |
| Standards | IEC 60068-2-27 Ea || IEC 61000-4-5 || IEC 61000-4-12 || IEC 61000-4-4 level 3 || IEC 61000-4-2 level 3 || IEC 61000-4-3 || IEC 60068-2-6 Fc || IEC 61000-4-11 || IEC 61000-4-6 level 3 |
|---|---|
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2 |
| Ip Degree Of Protection | IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel) |
| Ambient Air Temperature For Storage | -40-70 °C |
| Maximum Altitude Transport | 3048 m |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2011013EN |
| Pvc Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI2011013EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
