Schneider Electric 170ADM85010 discrete I/O module Modicon Momentum - 16 I/O relay
Schneider Electric 170ADM85010 discrete I/O module Modicon Momentum - 16 I/O relay
- MPN: 170ADM85010
- PPN: SCH-170ADM85010
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1363.05/ EA
Description

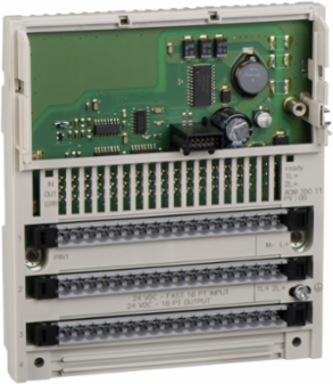

discrete I/O module Modicon Momentum - 16 I/O relay
Specifications
Environment
- Product Certifications
- FM Class 1 Division 2 || UL || CSA
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Operating Altitude
- <= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Voltage State 1 Guaranteed
- > 11 V 24 V || > 30 V 48 V || > 7.5 V 12 V
- Height
- 141.5 mm
- Fault Type
- overload on output
- Isolation Between Channels And Bus
- 707 V DC
- Current Consumption
- 250 mA 24 V DC || 125 mA 48 V DC || 500 mA 12 V DC
- Width
- 125 mm
- Input Voltage Limits
- 10...60 V
- Response Time
- < 0.1 ms from state 0 to state 1 on output || < 0.1 ms from state 1 to state 0 on output || 2.2 ms from state 0 to state 1 on input || 3.3 ms from state 1 to state 0 on input
- Voltage State 0 Guaranteed
- < 10 V 48 V || < 2.5 V 12 V || < 5 V 24 V
Power Dissipation6.0 + (0.144 x number of input points) + (0.25 x number of output points)
Isolation Between Group Of I/O Channels707 V DC
Maximum Voltage Drop<1 V 0.5 A at state 1 output circuit
Peak Output Current5 A
Current State 1 Guaranteed2.3 mA 12 V || 2.7 mA 24 V || 2.9 mA 48 V
Depth47.5 mm
Discrete Output Current0.5 A per point || 7 A 60 °C per module || 8 A 50 °C per group
[Us] Rated Supply Voltage12 V DC || 24 V DC || 48 V DC
Maximum Leakage Current1 mA 60 V output circuit)
Specifications
- Discrete Output Type
- solid state switch
- Group Of Channels
- 1 group of 16 outputs || 1 group of 16 inputs
- Discrete Input Logic
- positive
- Discrete Input Voltage
- 24 V DC || 12 V DC || 48 V DC
- Discrete Input Number
- 16 IEC 1131-2 Type 3
- Discrete Output Voltage
- <= 60 V DC || 12 V DC || 24 V DC || 48 V DC
Discrete Output Number16
Range Of ProductModicon Momentum automation platform
Discrete Output Logicpositive
Product Or Component Typediscrete relay I/O base DC
