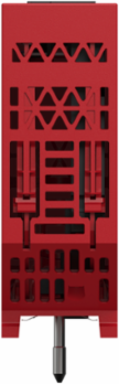

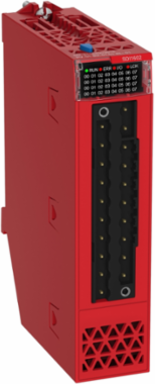

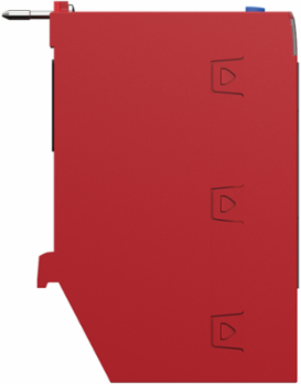

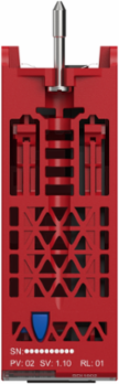

Schneider Electric BMXSDI1602 Modicon X80 Safety Discrete Input Module, 16 Inputs, 24V DC Positive

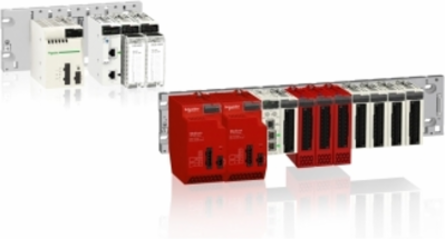

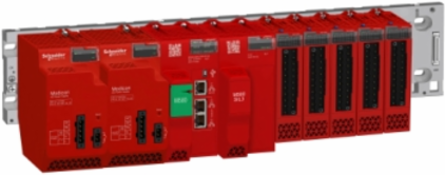

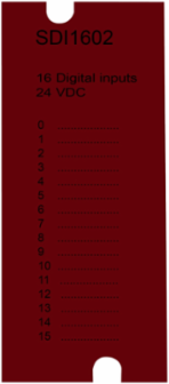

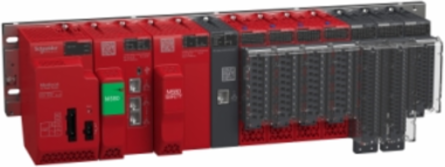

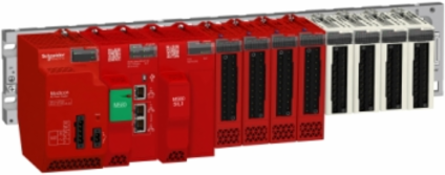

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC with current sink positive logic. It is the Modicon digital input module dedicated to M580 safety systems. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. It is an IP20 rated product. It weighs 0.115kg. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. It is to be used with BMXFTB2000 caged terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
