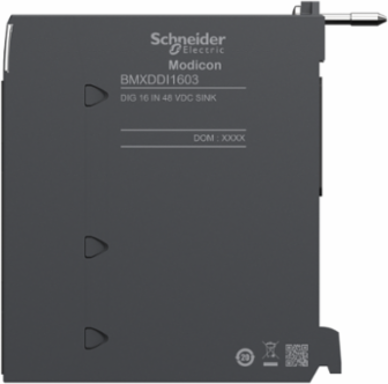

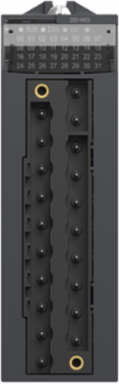

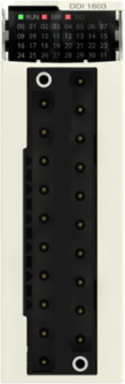

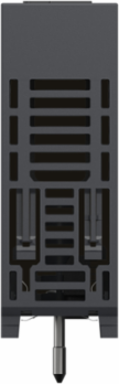

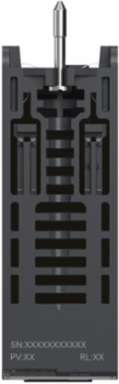

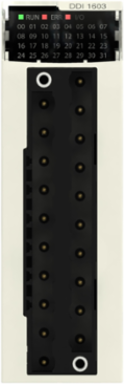

Schneider Electric BMXDDI1603 Modicon X80 Discrete Input Module, 16 Inputs, 48V DC Positive, IP20
- MPN: BMXDDI1603
- PPN: SCH-BMXDDI1603
CAD
$561.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 48V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.6W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Complementary Attributes
- Dc Maximum Filtering Time
- 7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
- Local Signalling
- 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Voltage Detection Threshold
- < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK< 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2839078788
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 20 kg CO2 eq., 20.4431515152
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current State 0 Guaranteed
- <= 0.5 mA<= 0.5 mA
- Dc Maximum Filtering Time
- 7 ms
- Device Application
- Industrial Application
- Hot Swapping Fallback
- yes
- Mtbf Reliability
- 777000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- standard version
- Returnability
- Yes
- Shock Resistance
- 30 gn
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 76 mA DC
- Voltage State 0 Guaranteed
- < 10 V< 10 V
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Height Nominal
- 103.7 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, RCM, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0209221818, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0426046061, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]13 kg CO2 eq., 12.8918199067
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current State 1 Guaranteed>= 2 mA>= 2 mA
Dc Typical Filtering Time4 ms
Dielectric Strength1500 V AC 50/60 Hz 1 minute, primary/secondary
Isolation Between Channels And Bus1500 V for 1 minute
Power Dissipation In W3.6 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Sensor Power Supply36-60 V
Software Versionv5.9.4
Total Lifecycle Carbon Footprint34 kg CO2 eq.
Vibration Resistance3 gn
Voltage State 1 Guaranteed>= 34 V>= 34 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential, In %3
Width Nominal32 mm
Package Weight(Lbs)158.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 33.6824060885
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- 16 isolated conforming to IEC 60947-5-2 at 48 V DC, 16 isolated conforming to IEC 61131-2 type 3 at 48 V DC, 16
- Discrete Input Logic
- positive logic (sink)
- Input Impedance
- 19200 Ohm
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Current2.5 mA at 48 V DC
Discrete Input Voltage48 V DCisolated
Input Protection Typereverse polarity protection
Paralleling Of Inputsyes
