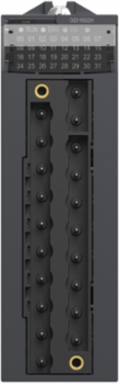

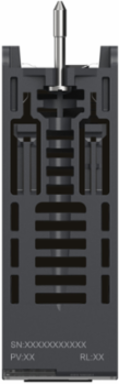

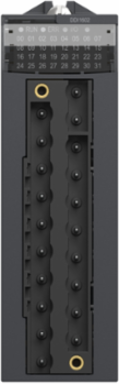

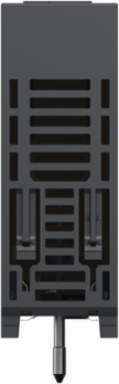

Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module, 16 Inputs, 24V DC, IP20
- MPN: BMXDDI1602H
- PPN: SCH-BMXDDI1602H
CAD
$600.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon X80 Discrete Input Module, 16 Inputs, 24V DC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Mexico, United States
Depth86 mm
Complementary Attributes
- Dc Maximum Filtering Time
- 7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Marking
- CE, UKCA, cULus, RCM, EAC
- Voltage Detection Threshold
- < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
- Carbon Footprint Of The Distribution Phase [A4]
- 0.021576, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.043936, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 13 kg CO2 eq., 12.8918199067
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current State 0 Guaranteed
- <= 1.5 mA<= 1.5 mA
- Dc Maximum Filtering Time
- 7 ms
- Device Application
- industrial application in severe environment
- Hot Swapping Fallback
- yes
- Mtbf Reliability
- 775000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 34 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Voltage State 1 Guaranteed
- >= 11 V>= 11 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential, In %
- 3
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 165.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 21.082
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 2.2102
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 86.541
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 44586
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 0.1361
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 56586
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 249.6
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 258.99
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.5349
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 0.1927
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 27309
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 22102
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 0.1927
- Water Use (M3 Eq) End Of Life [C1-c4]
- 44137
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
Local Signalling1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Sensor Power Supply19-30 V 60 °C, 21.1-26.4 V 70 °C
Certificate AgencyATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.29278
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 21.082
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint21.082
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current State 1 Guaranteed>= 2 mA>= 2 mA
Dc Typical Filtering Time4 ms
Dielectric Strength1500 V AC 50/60 Hz 1 minute, primary/secondary
Isolation Between Channels And Bus1500 V for 1 minute
Power Dissipation In W2.5 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Shock Resistance30 gn
Sustainable PackagingYes
Typical Current Consumption76 mA DC
Voltage State 0 Guaranteed< 5 V< 5 V
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal103.7 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]21.062
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]249.6
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]267.09
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]101.02
Materials For Recycling (Kg) Installation [A5]0.006
Net Use Of Fresh Water (M3) End Of Life [C1-c4]11553
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.1723
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]22102
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]24029
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]93911
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle27309
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]246.87
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]87289
Water Use (M3 Eq) Manufacturing [A1-a3]58454
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 34.3321119067
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- 16 isolated conforming to IEC 60947-5-2 at 24 V DC, 16 isolated conforming to IEC 61131-2 type 3 at 24 V DC, 16
- Discrete Input Logic
- positive logic (sink)
- Input Impedance
- 6800 Ohm
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Current3.5 mA at 24 V DC
Discrete Input Voltage24 V DCisolated
Input Protection Typereverse polarity protection
Paralleling Of Inputsyes
