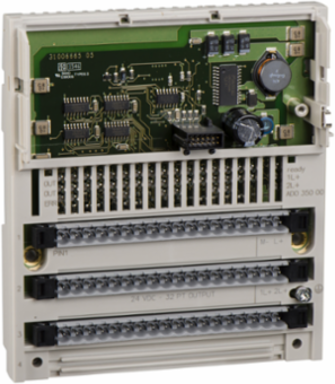

Schneider Electric 170ADO35000 Modicon Momentum Discrete Output Module - 32 Outputs, 24V DC

MPN: 170ADO35000
PPN: SCH-170ADO35000
UNSPSC: 32151601

$1174.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon Momentum Discrete Output Module by Schneider Electric enhances automation and control systems with its robust design, featuring 32 discrete outputs operating at 24V DC. This module is engineered for seamless integration into a variety of PLC, HMI, and data acquisition applications, facilitating precise control over numerous outputs to meet the demands of modern industrial automation. With its reliability and efficiency, this output module supports optimal performance across diverse settings, making it an essential component for any sophisticated control system.

Features

Easy installation
Modular product

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	47.5 mm

Weight	403 g

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Certificate Agency	CSA, UL
Terminals Description Plc N°2	(6)OUT_DIS 22, (4)OUT_DIS 20, (7)OUT_DIS 23, (2L+)PW_POS, (3)OUT_DIS 19, (8)OUT_DIS 24, (10)OUT_DIS 26, (12)OUT_DIS 28, (2)OUT_DIS 18, (13)OUT_DIS 29, (16)IN_DIS 32, (11)OUT_DIS 27, (14)OUT_DIS 30, (15)OUT_DIS 31, (5)OUT_DIS 21, (9)OUT_DIS 25, (1)OUT_DIS 17, (1L+)PW_POS, (6)OUT_DIS 22, (4)OUT_DIS 20, (7)OUT_DIS 23, (2L+)PW_POS, (3)OUT_DIS 19, TB_1, (8)OUT_DIS 24, (10)OUT_DIS 26, (12)OUT_DIS 28, (2)OUT_DIS 18, (13)OUT_DIS 29, (16)IN_DIS 32, (11)OUT_DIS 27, (14)OUT_DIS 30, (15)OUT_DIS 31, (5)OUT_DIS 21, (9)OUT_DIS 25, (1)OUT_DIS 17, (1L+)PW_POS
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5 kg CO2 eq., 0.49852845125232875
Carbon Footprint Of The Manufacturing Phase A1 To A3	130 kg CO2 eq., 130.12450097117068
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Current Per Channel	0.5 A
Local Signalling	32 LEDs for channel status
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Sustainable Packaging	No
Dc Supply Voltage	24-24 V
Database Version	2024-01
Height Nominal	141.5 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Terminals Description Plc N°1	(15)OUT_DIS 15, (2)OUT_DIS 2, (8)OUT_DIS 8, (L+)PW_POS, (16)OUT_DIS 16, (7)OUT_DIS 7, (M-)PW_NEG, (12)OUT_DIS 12, (9)OUT_DIS 9, (11)OUT_DIS 11, (14)OUT_DIS 14, (1)OUT_DIS 1, (5)OUT_DIS 5, (10)OUT_DIS 10, (13)OUT_DIS 13, (3)OUT_DIS 3, (4)OUT_DIS 4, (6)OUT_DIS 6, (15)OUT_DIS 15, TB, (2)OUT_DIS 2, (8)OUT_DIS 8, (L+)PW_POS, (16)OUT_DIS 16, (7)OUT_DIS 7, (M-)PW_NEG, (12)OUT_DIS 12, (9)OUT_DIS 9, (11)OUT_DIS 11, (14)OUT_DIS 14, (1)OUT_DIS 1, (5)OUT_DIS 5, (10)OUT_DIS 10, (13)OUT_DIS 13, (3)OUT_DIS 3, (4)OUT_DIS 4, (6)OUT_DIS 6
Carbon Footprint Of The Distribution Phase A4	0.12035960379116567, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.22132762768286726, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	141 kg CO2 eq., 141.10219037035654
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Group Of Channels	2 groups of 16 outputs
Marking	CE
Product Or Component Type	discrete output base DC
Range Of Product	Modicon Momentum automation platform
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	272 kg CO2 eq.
Time Delay At Signal Change	0.1-0.1 ms
Data Source	extrapolated product
Width Nominal	125 mm
Customs Code	8538908180
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
Functional Unit Unit	unit
Recyclability Potential In %	4

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	272.0669070242536
Environmental Disclosure	ENVPEP1403005EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-07-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1403005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1403005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
